9999SPL28G
NEMA Motor Starter and contactor, Type S, pilot light kit , LED, green, 120VAC 60Hz, NEMA size 00 to 7, Type 1/3R/12

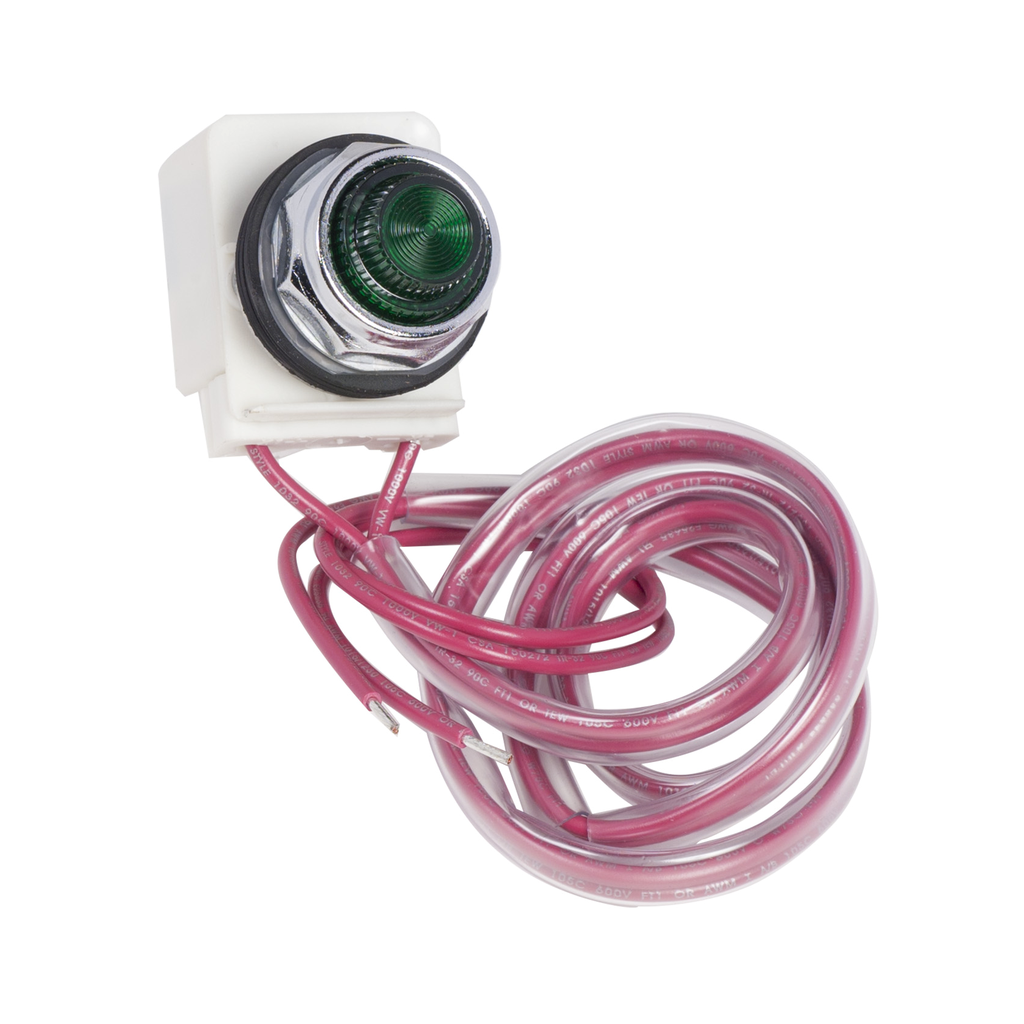

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This green LED pilot light kit is for Type S contactors and starters in a NEMA 1, 3R and 12 enclosure. This pilot light kit will work at 120 VAC 60 Hz. The pilot light is mounted in the door of the enclosure. Kit comes with a green LED lamp and a green pilot light lens. This light module kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection |
|
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| [Ue] Rated Operational Voltage | 120 V AC 60 Hz |
| Nema Size |
|
| Signalling Colour | green |
| Kit Composition |
|
| Country of Origin | Mexico |
| Range Of Product | type S |
| Product Or Component Type | pilot light kit |
| Product Destination |
|
