9999SP2R

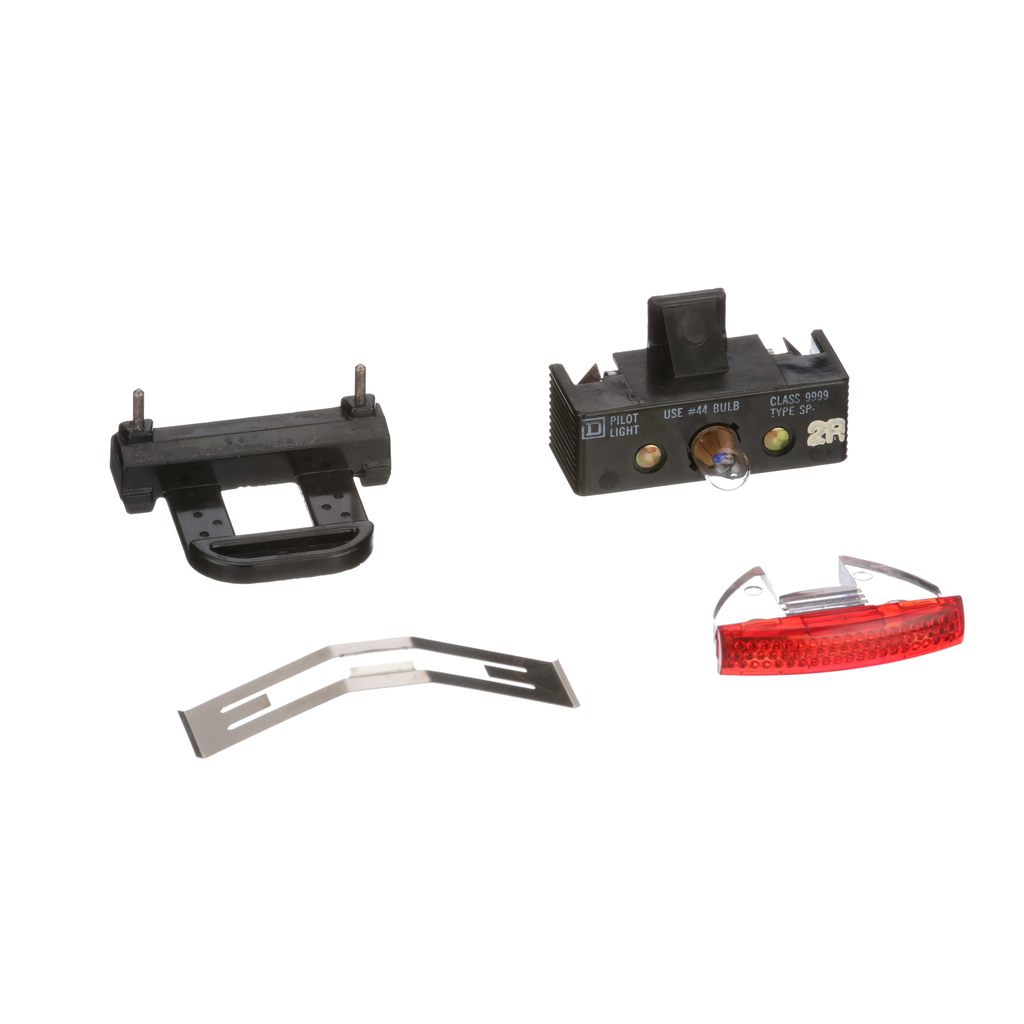

NEMA Motor Starter and contactor, Type S, pilot light kit, red and green, 5V to 600VAC 50/60Hz, NEMA size 00 to 1, Type 1
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This pilot light kit is for NEMA size 00, 0, 1 and 1P Type S contactors and starters in NEMA 1 enclosure. This pilot light kit will work from 6 to 600 volt. The pilot light kit comes with a red and green lens. The pilot light is mounted on the top of the Type S device. The lens in inserted into the knockout in the enclosure cover. This light module kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| [Ue] Rated Operational Voltage | <= 600 V AC 50/60 Hz |
| Nema Size |
|
| Signalling Colour | green/red |
| Kit Composition |
|
| Country of Origin | United States |
| Range Of Product | type S |
| Product Or Component Type | pilot light kit |
| Product Destination |
|
Documents
- 8502SB and 8536SB AC Magnetic Contactors and Starters Installation Instructions - 30072-013-09 (pdf)
- Pilot Light Kits, Class 9999 Types SP2, SP3, SP4, and SP5 Installation Instructions - 30072-003-36 (pdf)
- 8502SA and 8536SA, AC Magnetic Contactors and Starters, Size 00, Series B, 2- and 3-Pole Instruction Bulletin - 30072-013-08 (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Square D Lighting Contactors Catalog - 8903CT9701 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
