9999SO5
NEMA Motor Starter and contactor, Type S, isolated alarm contacts, for melting alloy overload relays, NC alarm contact

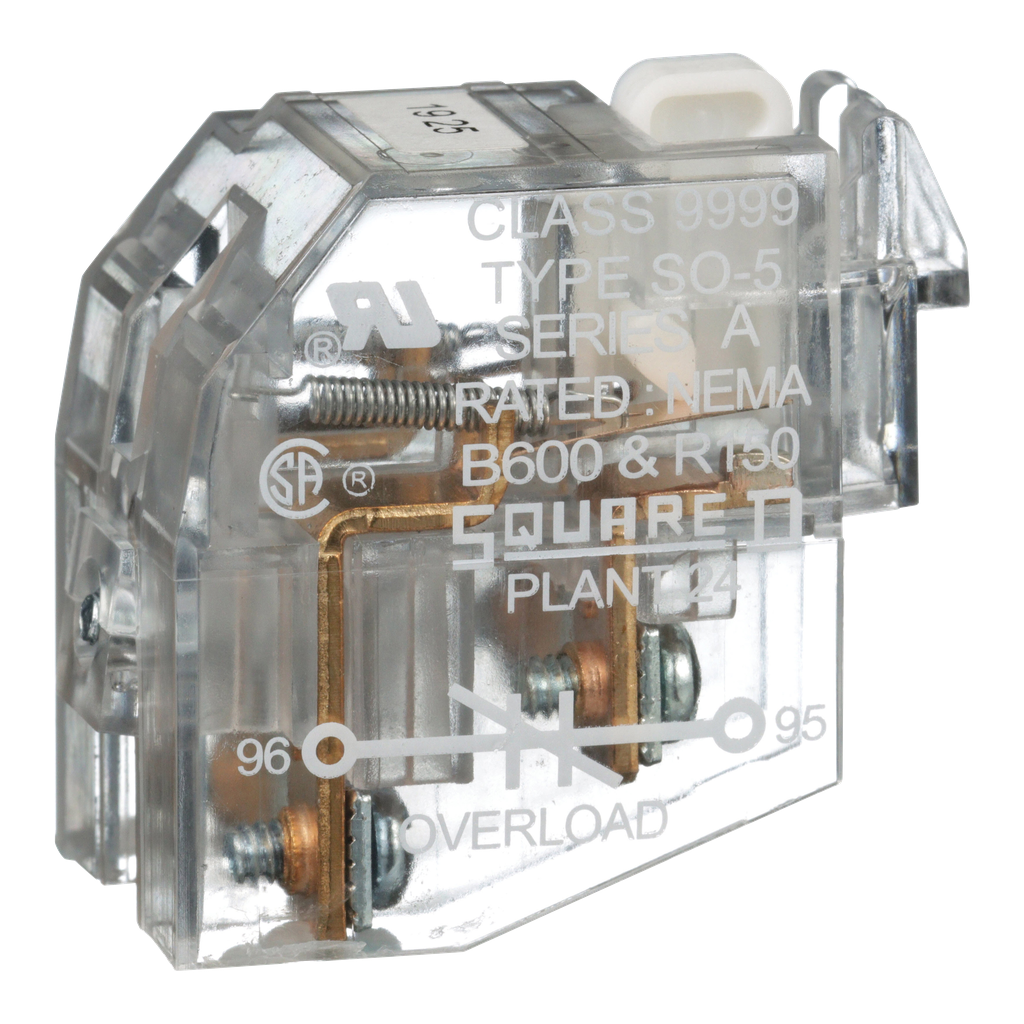

Type S magnetic contactors and starters are for motor control applications. This isolated overload relay alarm contact is available factory installed or as a kit for field installation. This kit will work with melting alloy overload relays used on Type S NEMA size 00 through 6 starters. This module has a normally closed isolated alarm contact and a standard normally closed overload relay contact. The case is made of clear plastic to allow for visual inspection of the contacts. This module is UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Country of Origin | Mexico |
| Thermal Overload Type | melting alloy |
| Product Destination | overload relay |
| Range Of Product | Accessory |
| Contacts Type And Composition | 1 NC |
| Product Or Component Type | auxiliary contact |
| [Ue] Rated Operational Voltage | 600 V AC |
| Warranty | 18 months |
