9999SF4

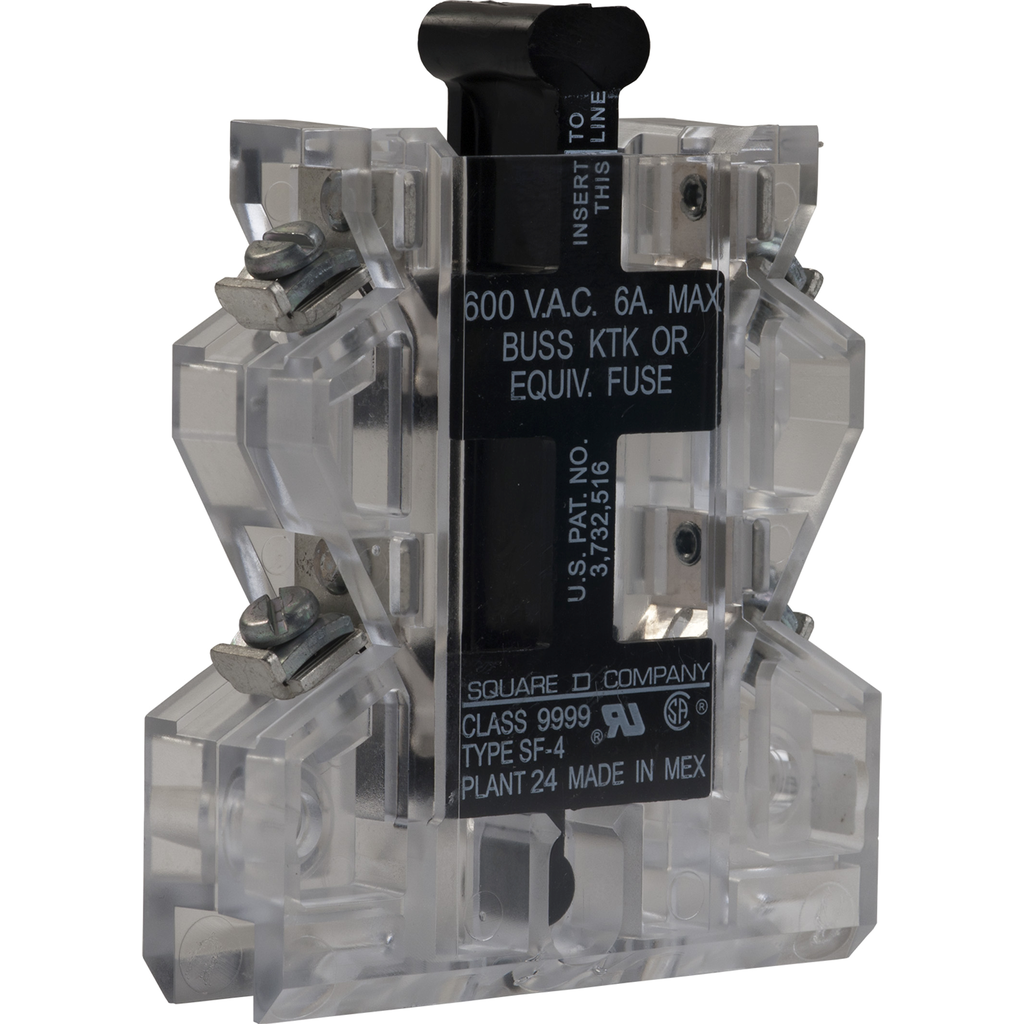

NEMA Motor Starter and contactor, Type S, fuse holder kit, 6A, 600VAC, Type M fuse, two fuses, NEMA 00 to 7
Type S magnetic contactors and starters are for motor control applications. The control circuit fuse holder is for use on Type S contactors and starters, when one or two control circuit fuses ≤600 V are required. This fuseholder will work on Type S contactors and starteres from NEMA Size 00 through 7. Type SF4 fuse holders will accept standard 600 V Bussmann® Type KTK or equivalent fuses (13/32 x 1-1/2") up to 6A maximum. This fusehlder is designed to hold two fuses. The fuseholder is UL Listed and UL Component Recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| [Ue] Rated Operational Voltage | <= 600 V AC |
| Mounting Mode | side |
| Nema Size |
|
| Fuse Type | M |
| Rated Breaking Capacity | 6 A |
| Number Of Poles | 2 |
| Country of Origin | Mexico |
| Range Of Product | type S |
| Product Or Component Type | fuse holder |
| Product Destination |
|
