9999SC2

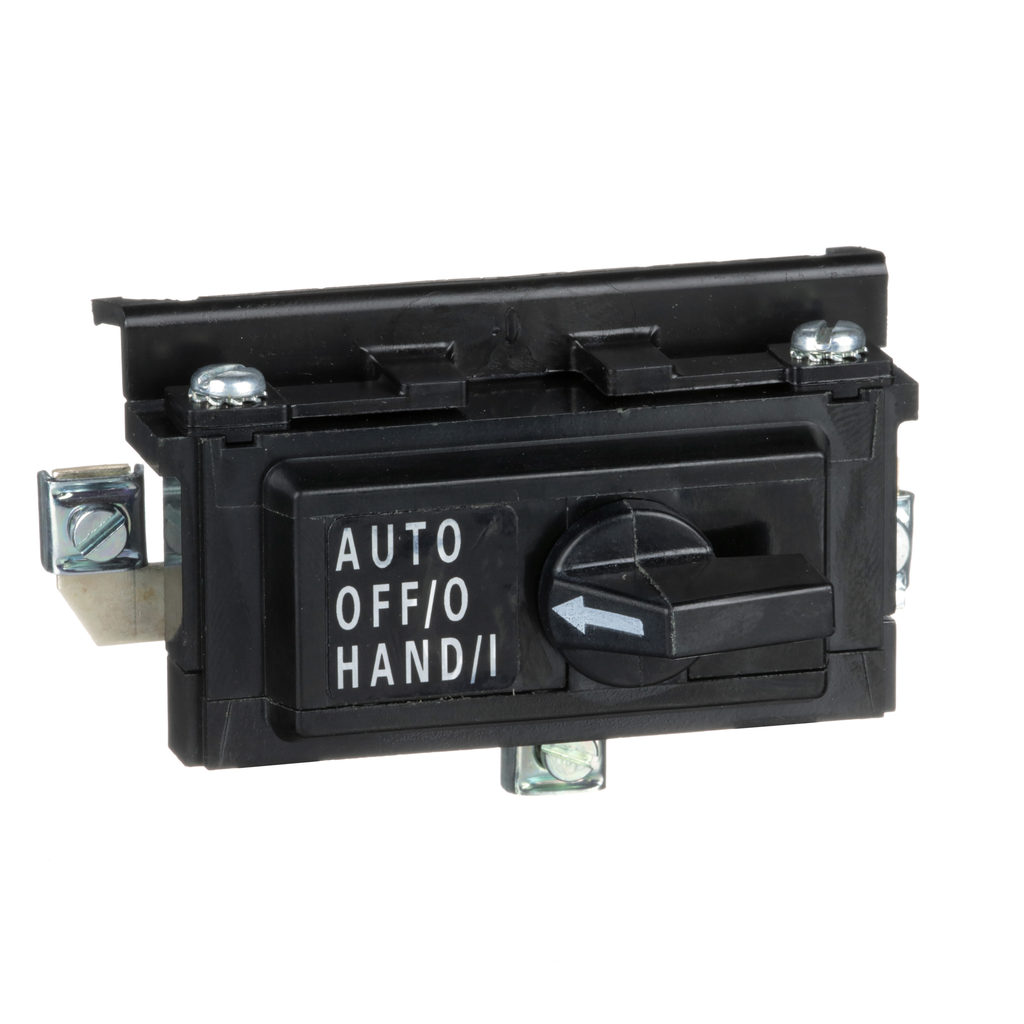

NEMA Motor Starter and contactor, Type S, hand/off/auto selector switch kit, NEMA 1
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Hand Off Auto selector switch kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The selector switch is mounted into the knockout in the enclosure cover. This selector switch kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| Height | 1.88 in |
| Nema Size |
|
| Rated Breaking Capacity |
|
| Marking | HAND-OFF-AUTO |
| Net Weight | 0.23 kg |
| Mounting Mode | panel-mounted |
| Width | 3.81 in |
| Depth | 5.63 in |
| Country of Origin | Mexico |
| Width | 3.81 in |
| Height | 1.88 in |
| Weight | 0.23 kg |
| Range Of Product | type S |
| Product Or Component Type | selector switch |
| Product Destination |
|
