9999SA2

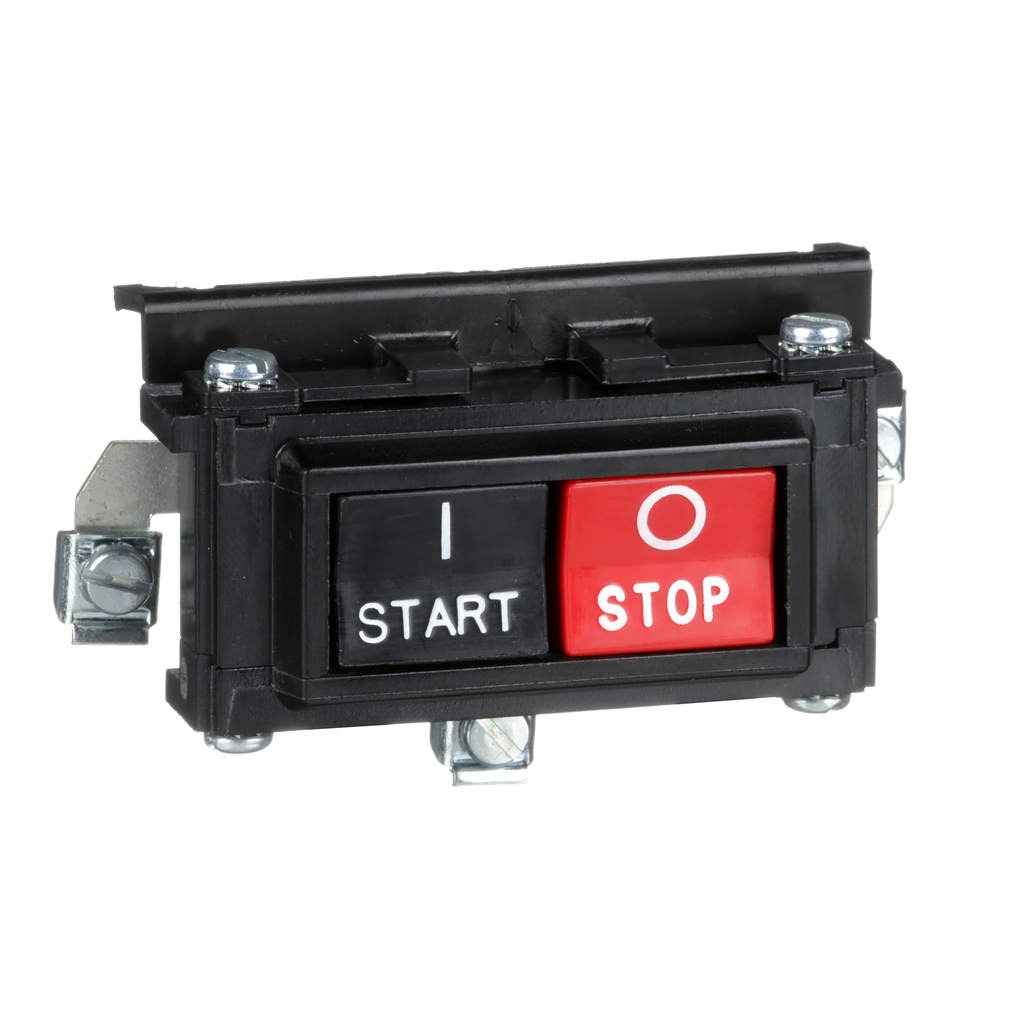

NEMA Motor Starter and contactor, Type S, start/stop push button kit, NEMA 1
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| Height | 25.8 mm |
| Nema Size |
|
| Rated Breaking Capacity |
|
| Marking | START-STOP |
| Net Weight | 0.17 kg |
| Mounting Mode | panel-mounted |
| Width | 65.5 mm |
| Depth | 609.6 mm |
| Country of Origin | United States |
| Width | 65.5 mm |
| Height | 25.8 mm |
| Weight | 0.17 kg |
| Range Of Product | type S |
| Product Or Component Type | push-button |
| Product Destination |
|
