9999S2

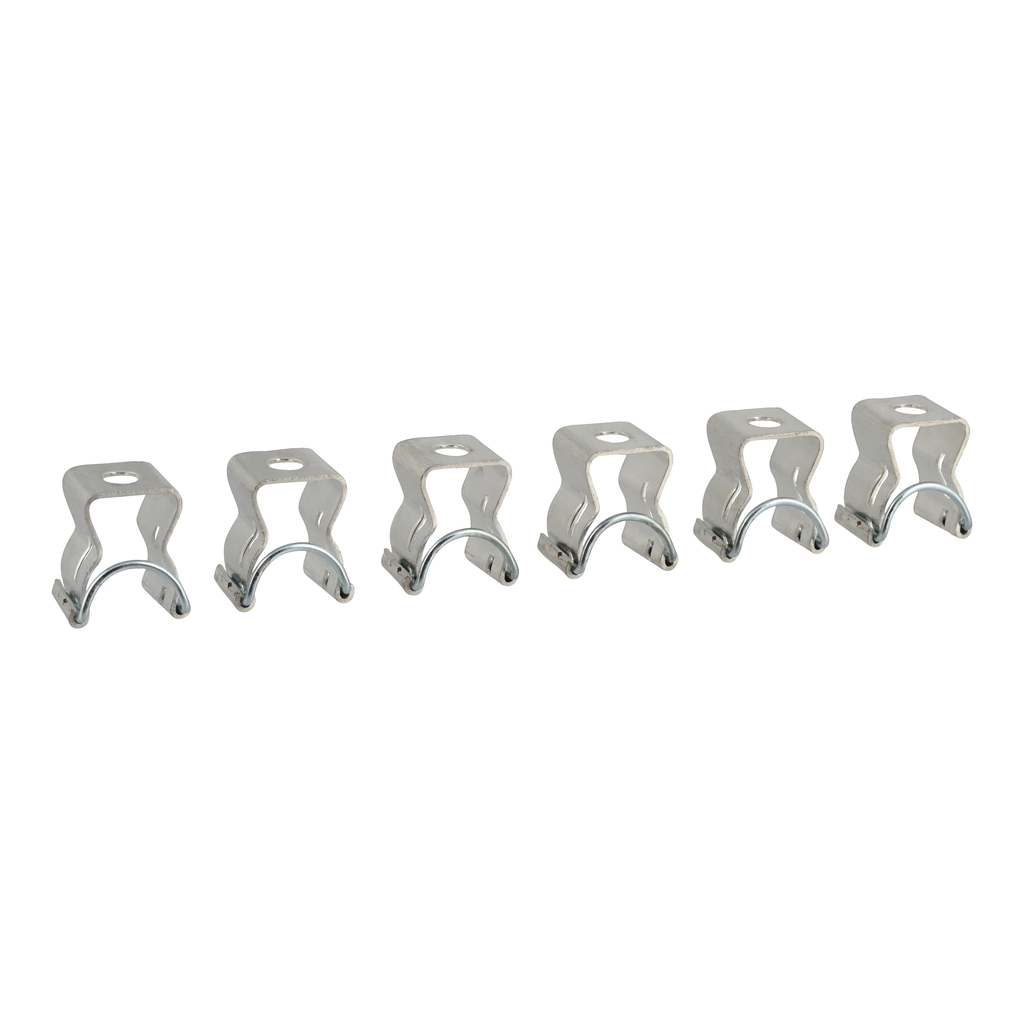

NEMA combination starter, Type S, fusible disconnect, fuse clip kit, class H fuse, 30A, 600V, NEMA 0-1 or 30A contactor
8538 Type S combination starters combine the requirements of motor overload and short circuit protection into one package. 8538 Type S combination starters can be furnished with either a fusible or nonfusible disconnect switch. Class 8538 combination starters are available in NEMA Size 0 through 6. This replacement fuse clip kit is for 8538S pre series D and 8738S pre series E combination starters. Fuse clip kit is for NEMA size 0 or 1 combination starters or 30 A lighting contactors. The replacement fuse clip kit is for class H fuses up to 30 A and up to 600V.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| Fuse Type | H |
| Country of Origin | Mexico |
| Range Of Product | 8538/8738 |
| Product Or Component Type | Fuse Clip Kit |
| Product Destination | starter |
Documents
- 8538S and 8738S, Series C, Size 0 and 1, 3-Pole AC Combination Starters with 30 A Disconnect Switches and Flange-Mounted Operating Mechanisms - Installation Instructions - 502AS (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
