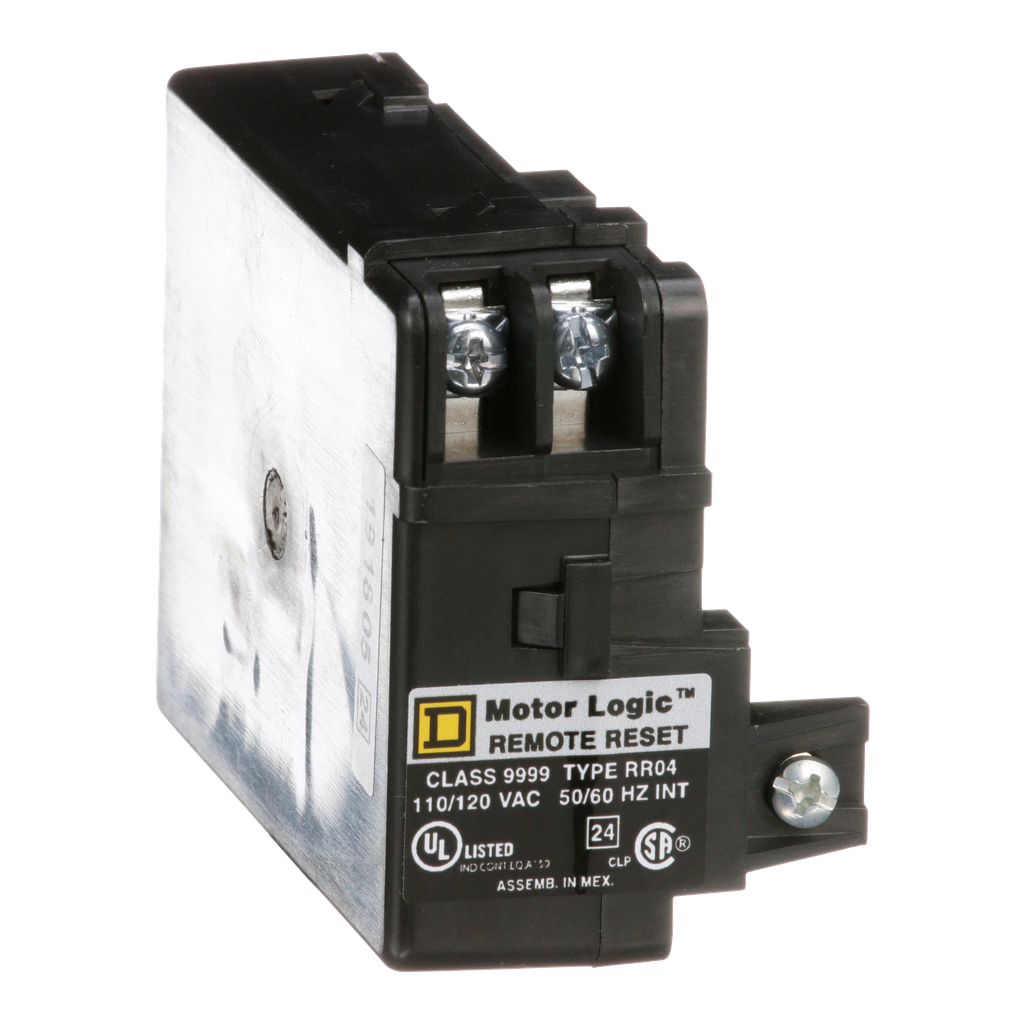

9999RR04
Overload Relay, Motor Logic, solid state, remote reset module, 120 VAC
Motor Logic solid state overload relays are designed to protect 50/60 Hz, 3 phase AC motors from overload, phase unbalance, and phase loss conditions. This module allows the Motor Logic solid state overload relay to be reset from a remote location. The remote reset module can be easily field installed on Motor Logic SSOLRs. This remote reset module can be used with Motor Logic SSOLR on NEMA Type S motor starters from NEMA size 00 through 7. The remote reset module is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Ue] Rated Operational Voltage | 600 V AC |
|---|---|
| Country of Origin | United States |
| Thermal Overload Type | solid state |
| Product Destination | overload relay |
| Range Of Product | Accessory |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Warranty | 18 months |
Documents
- Motor Logic Solid-State Overload Relay Assembly, Class 9065, Type ST620 or ST6209, Size 6 Installation Instructions - 30072-013-61_01 (pdf)
- Motor Logic Solid-State Overload Relay Installation Instructions - 30072-452-39+final (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
