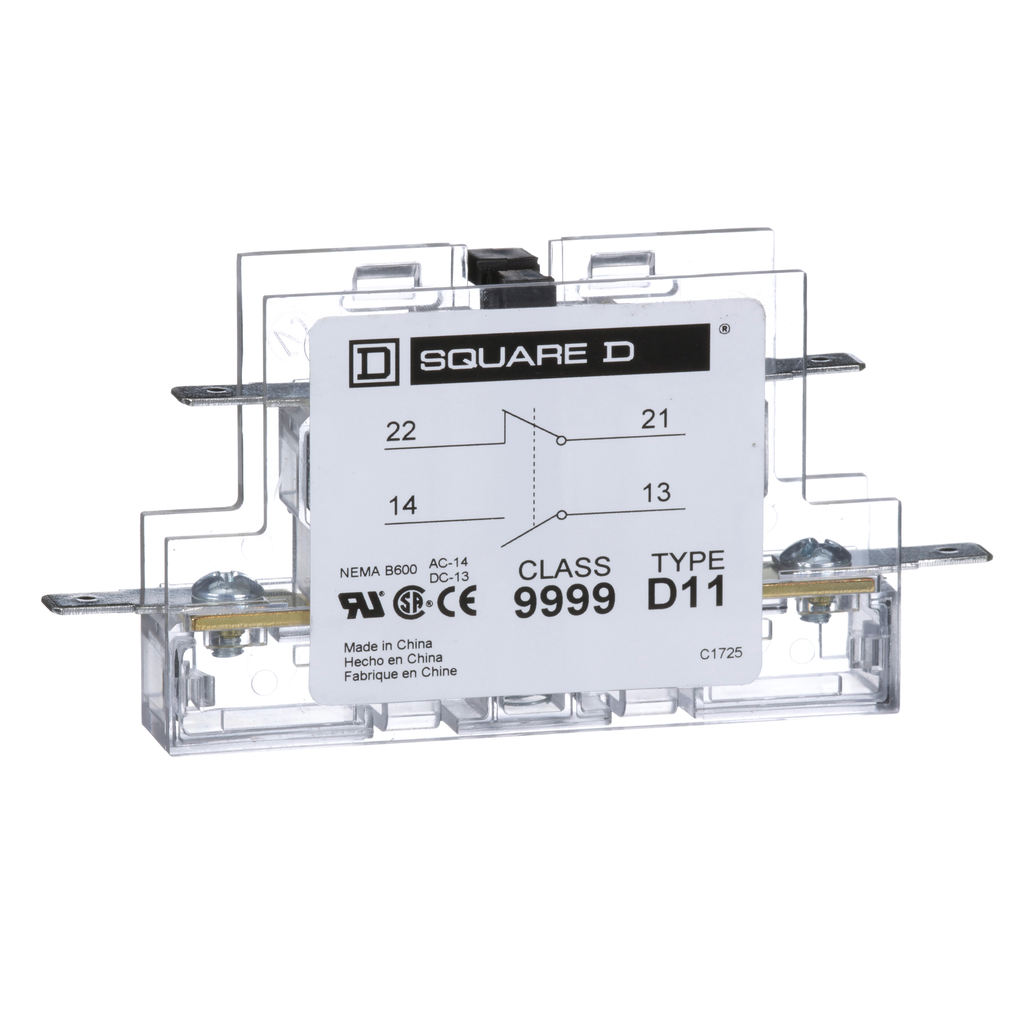

9999D11
Contactor, Definite Purpose, auxiliary contact, 3A at 120 VAC, 1 NO contact and 1 NC contact, for 20A to 90A contactors
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 20A to 90A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Rated Breaking Capacity |
|
| Country of Origin | Mexico |
| Range Of Product | DPA |
| Product Or Component Type | Auxiliary Contact Module |
| Product Destination | contactor |
Documents
- 9999D Auxiliary Contacts for Use with Class 8910 Type DPA Contactors, Types D10, D01, D11, and D20 - 30072-004-97C (pdf)
- Definite Purpose Starter, Class 8911 Types DPSO and DPSG Installation Instructions - 30072-005-72 (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
