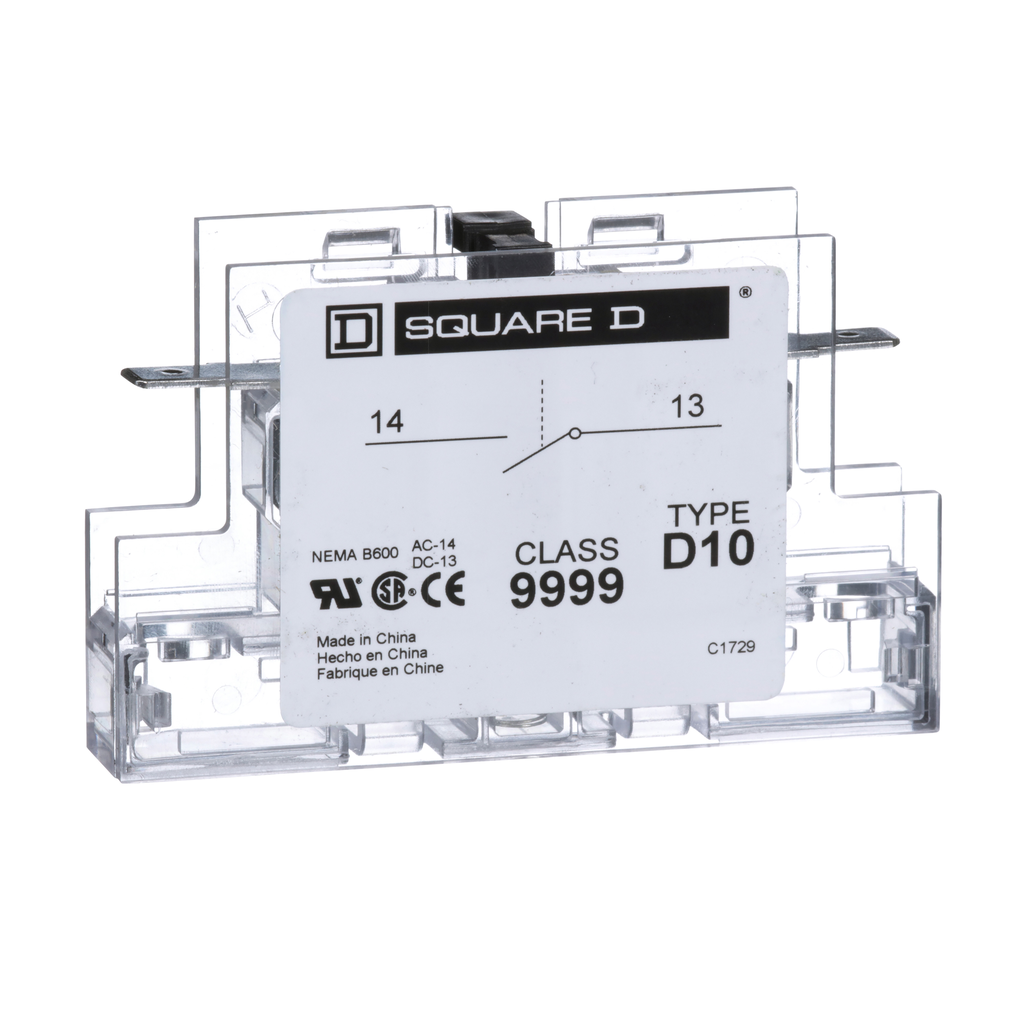

9999D10
Contactor, Definite Purpose, auxiliary contact, 3A at 120 VAC, 1 NO contact, for 20A to 90A DPA contactors
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally open contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Auxiliary Contact Composition | 1 NO |
| Rated Breaking Capacity |
|
| Country of Origin | China |
| Range Of Product | DPA |
| Product Or Component Type | Auxiliary Contact Module |
| Product Destination | contactor |
Documents
- 9999D Auxiliary Contacts for Use with Class 8910 Type DPA Contactors, Types D10, D01, D11, and D20 - 30072-004-97C (pdf)
- Definite Purpose Starter, Class 8911 Types DPSO and DPSG Installation Instructions - 30072-005-72 (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
