9998SO31
NEMA Motor Starter, Type S, melting alloy overload relay jumper strap

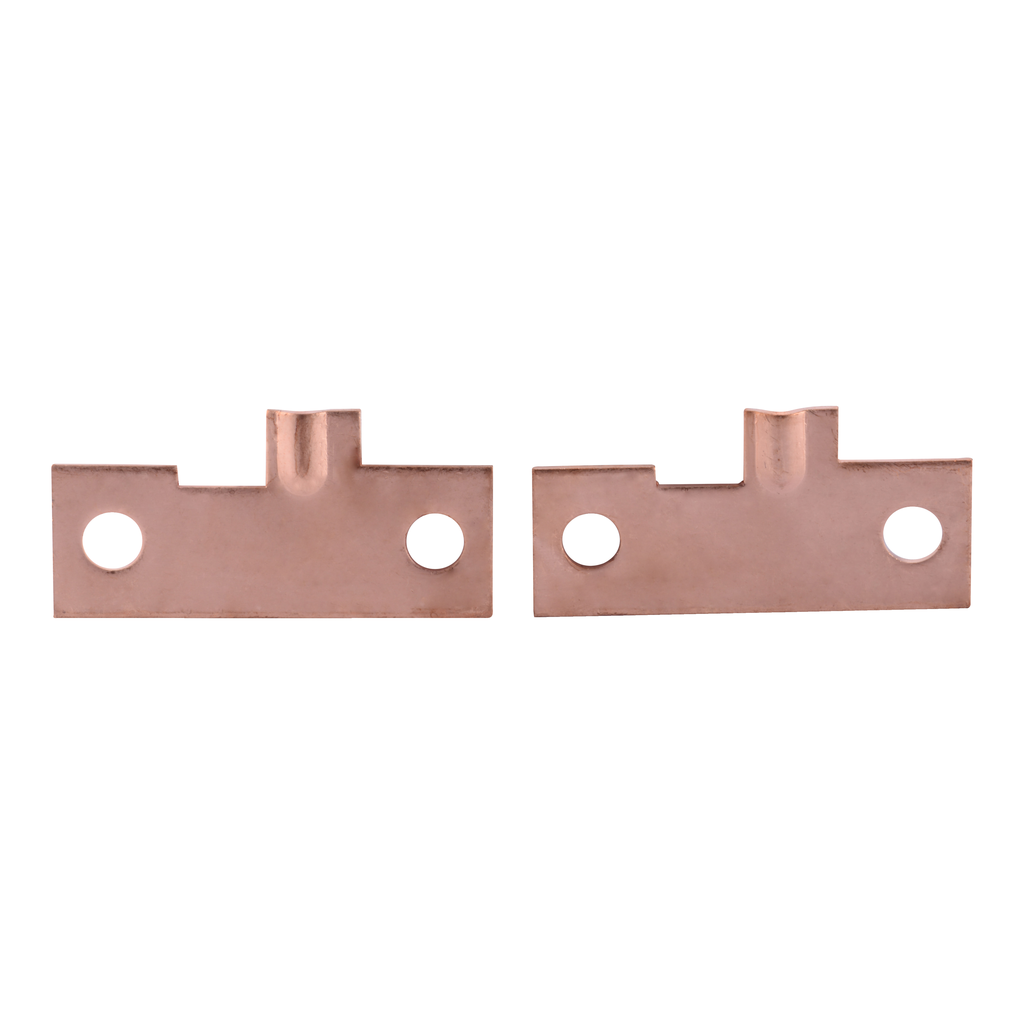

Jumper strap kits are used on three phase manual and magnetic starters with melting alloy overload relays. It is used where a three phase starter is used to control a single phase motor. This kit contains two jumper straps and a wiring diagram showing how to wire a three phase starter to control a single phase motor. It also includes a single phase thermal unit selection table. Can be used with 8536SA, 8536SB, 8536SC, 8536SD starters and 2510M and 2510T manual starters.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 23.4 mm |
| Height | 47.6 mm |
| Thermal Overload Type | melting alloy |
| Product Destination | overload relay |
| Range Of Product | Accessory |
| Height | 47.6 mm |
| Width | 23.4 mm |
| Depth | 3 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
