9998SL11
NEMA Contactor and NEMA Motor Starter, Type S, replacement contact kit, 8502SG, 8536SG, 8903SX, NEMA size 5, 300A, 3 pole

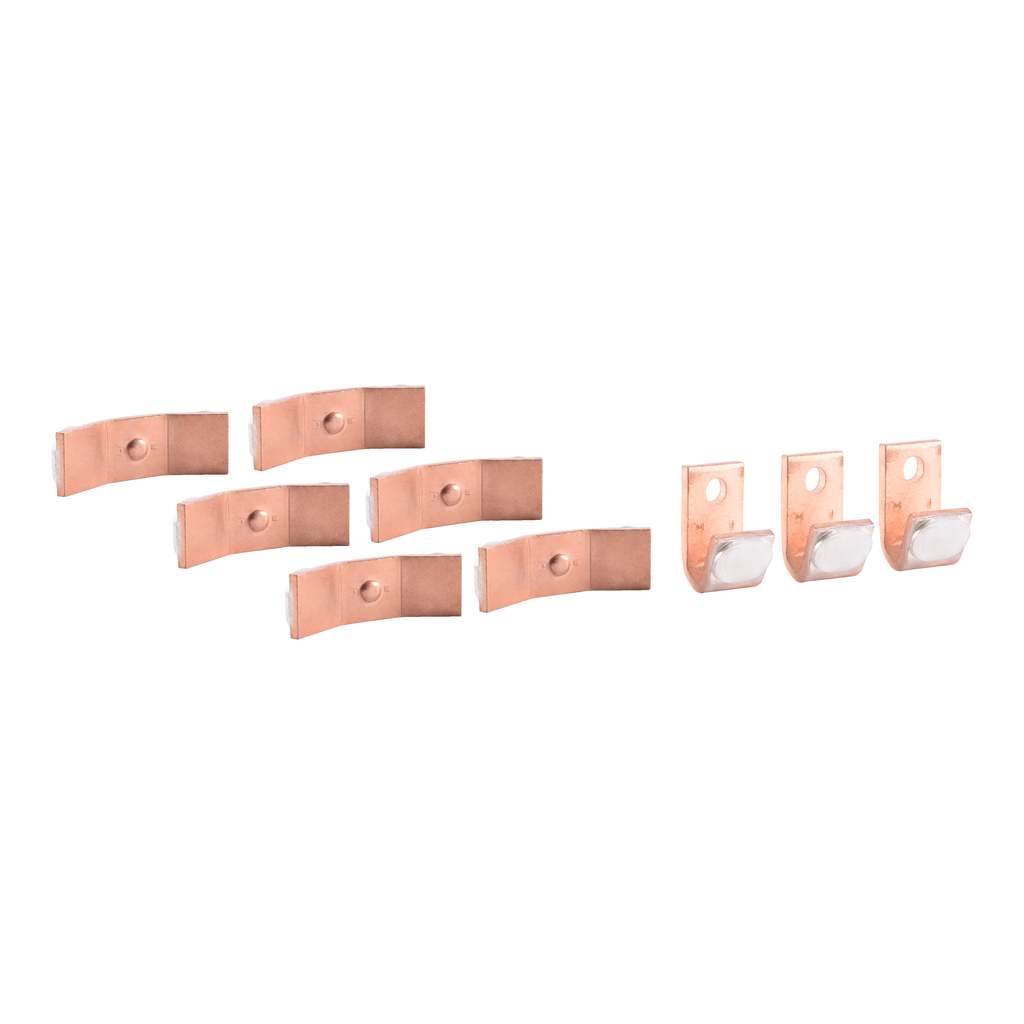

Type S magnetic contactors and starters are for motor control applications. 8903S lighting contactors are for lighting control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 5 contactor or starters or 300A lighting contactor. This replacement contact kit is for 3 pole 8502SG contactors, 8536SG starters and 8903SX lighting contactors. Kit includes the movable and stationary contacts and needed hardware for 3 pole Size 5 device.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Product Or Component Type | contact kit |
| Accessory / Separate Part Destination |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Nema Size | 5 |
| Number Of Poles | 3 |
| Warranty | 18 months |
Documents
- 8502SG and 8536SG, 2- and 3-Pole AC Magnetic Contactors and 3-Pole AC Magnetic Starters with Motor Logic; Plus Solid-State Overload Relay, Size 5, Series A, Form B Installation Instructions - 30072-013-110 (pdf)
- AC Magnetic Starters with TeSys T MMS, Size 5 Installation Instructions - 30072-452-70+Rev.01 (pdf)
- 8502SG/8536SG, Form Y500, Size 5 AC Magnetic 2- and 3-Pole Contactors and 3-Pole Starters, Series A Installation Instructions - 30072-013-16A (pdf)
- Two- and Three-pole 300 A Electrically Held AC Magnetic Lighting Contactors, Type SX, Series A Installation Instructions - 8903-335 (pdf)
- AC Magnetic Contactors and Starters - 30072-013-103_01 (pdf)
- 8502SG and 8536SG, AC Magnetic Contactors and Starters with Motor Logic; Solid-State Overload Relay, Size 5 - 30072-013-47 (pdf)
- 8502SG and 8536SG, AC Magnetic Contactors and Starters, Size 5, Series A, 2- and 3-Pole Installation Instructions - 30072-013-18 (pdf)
- 8903SXO Electrically Held AC Magnetic Lighting Contactors, 300 A, 2 & 3 Pole, Series B Installation Instructions - 30072-013-106 (pdf)
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- Spec Sheet
