9998SJ1
NEMA Contactor and NEMA Motor Starter, Type S, replacement contact kit, 8502SA, 8536SA, NEMA size 00 series B, 3 pole

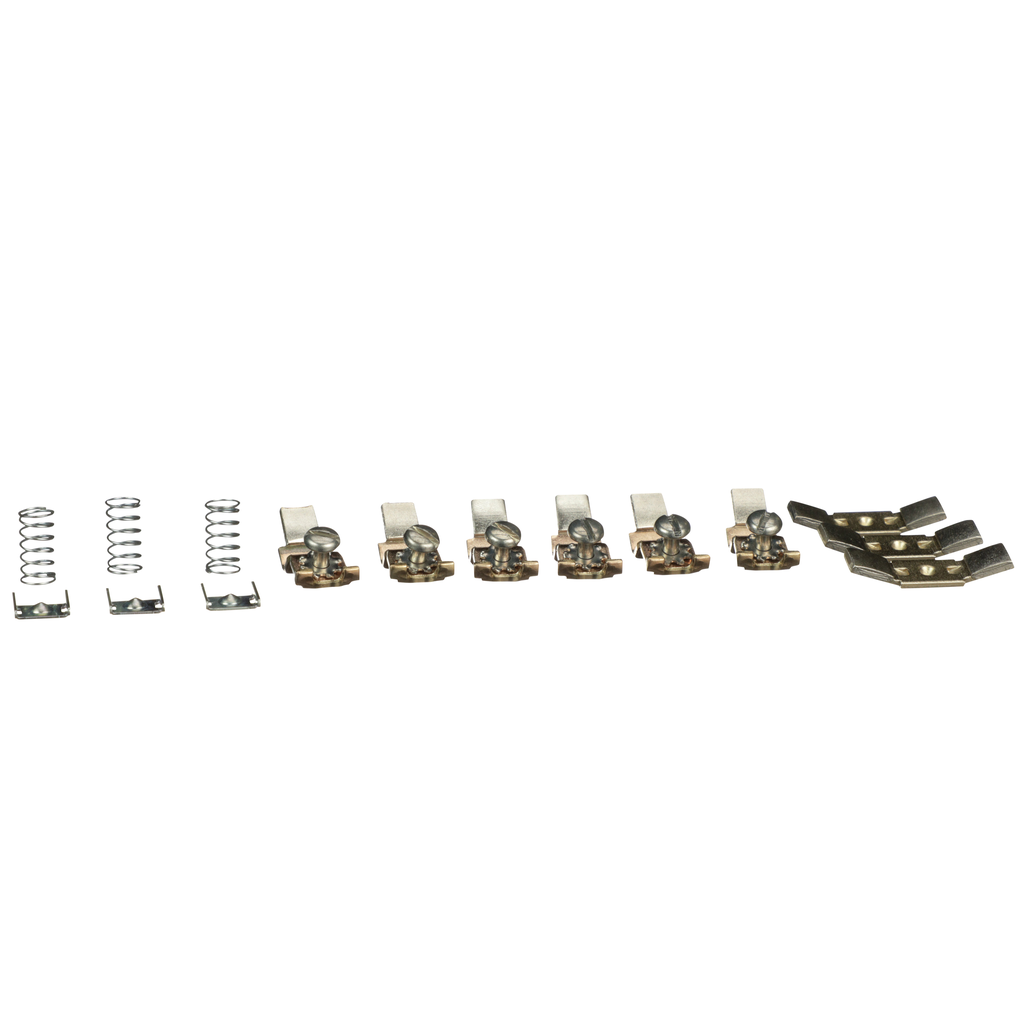

Type S magnetic contactors and starters are for motor control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 00 contactor or starters. This replacement contact kit is for 3 pole 8502SA contactors and 8536SA starters. For use with series B devices. Kit includes the movable and stationary contacts and needed hardware for 3 poles. These contacts are used in Type S contactors and starters that are UL listed and CSA certified. A wide variety of accessories are available for Type S contactors and starters.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Destination | class 8536 type S starter |
|---|---|
| Product Or Component Type | contact kit |
| Warranty | 18 months |
| Series Name | B |
| Nema Size | 00 |
| Number Of Poles | 3 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
Documents
- Spec Sheet
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- 8502SA and 8536SA, AC Magnetic Contactors and Starters, Size 00, Series B, 2- and 3-Pole Instruction Bulletin - 30072-013-08 (pdf)
- AC Magnetic Starters, Class 8536 Type SA, Form E, Series C, Size 00, 2- and 3-Poles Installation Instructions - 30072-454-65 (pdf)
