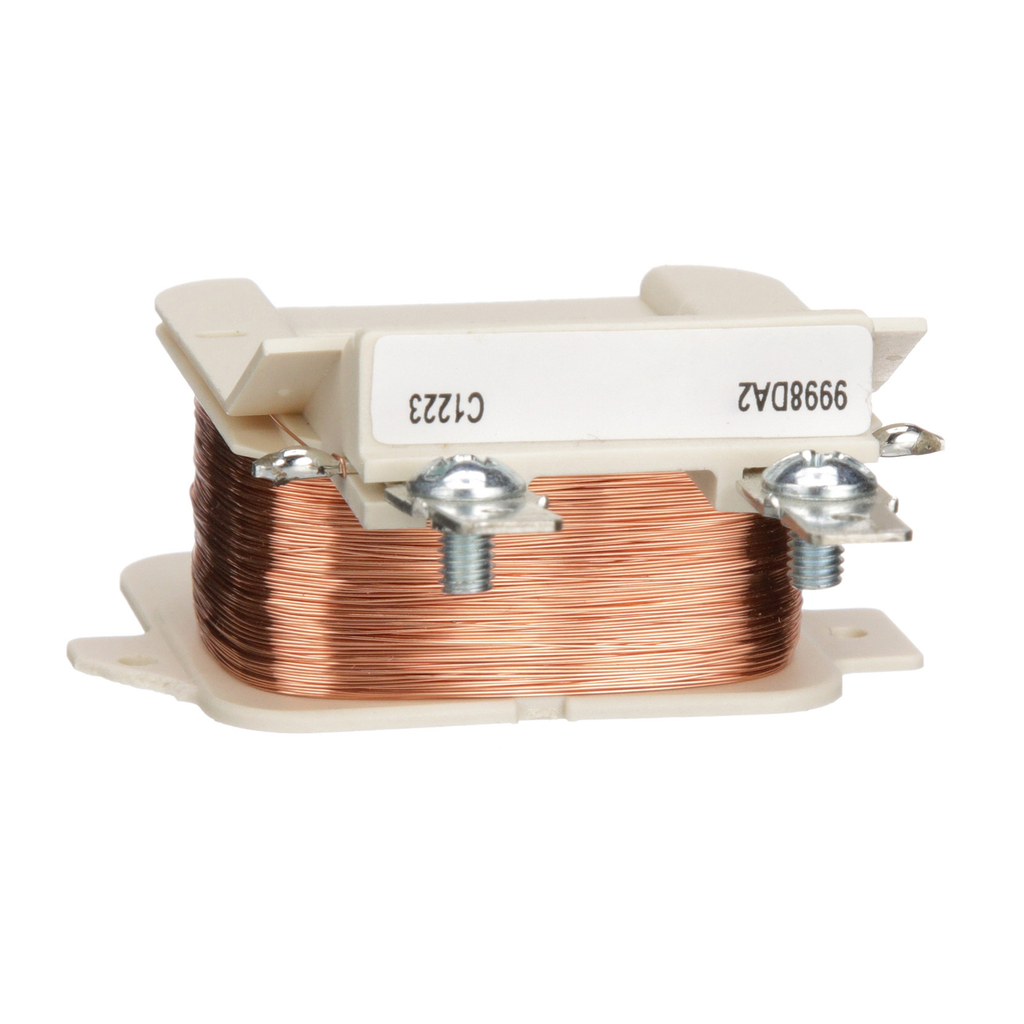

9998DA2V09 – Contactor, Definite Purpose, replacement coil, 220/240VAC 50/60Hz, for 8910DPA 50A and 60A contactors, 2 and 3 poles
9998DA2V09
Contactor, Definite Purpose, replacement coil, 220/240VAC 50/60Hz, for 8910DPA 50A and 60A contactors, 2 and 3 poles

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 208/240 VAC 60 Hz and 220 VAC 50 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
[Ue] Rated Operational Voltage
  • 208/240 V AC 60 Hz
  • 220 V AC 50 Hz
Height 3.27 in
Average Consumption 10 VA
Inrush Power In Va 109 VA
Width 2.56 in
Depth 3.67 in
Country of Origin Mexico
Width 2.56 in
Height 3.27 in
Product Or Component Type coil
Accessory / Separate Part Destination 8910DPA contactor
Rohs Exemption Information Yes
Mercury Free Yes
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant with Exemptions
Warranty 18 months
