9991SDG8
NEMA Motor Starter, Type S, nonreversing, enclosure, for 8536SD, NEMA Size 2, NEMA 1

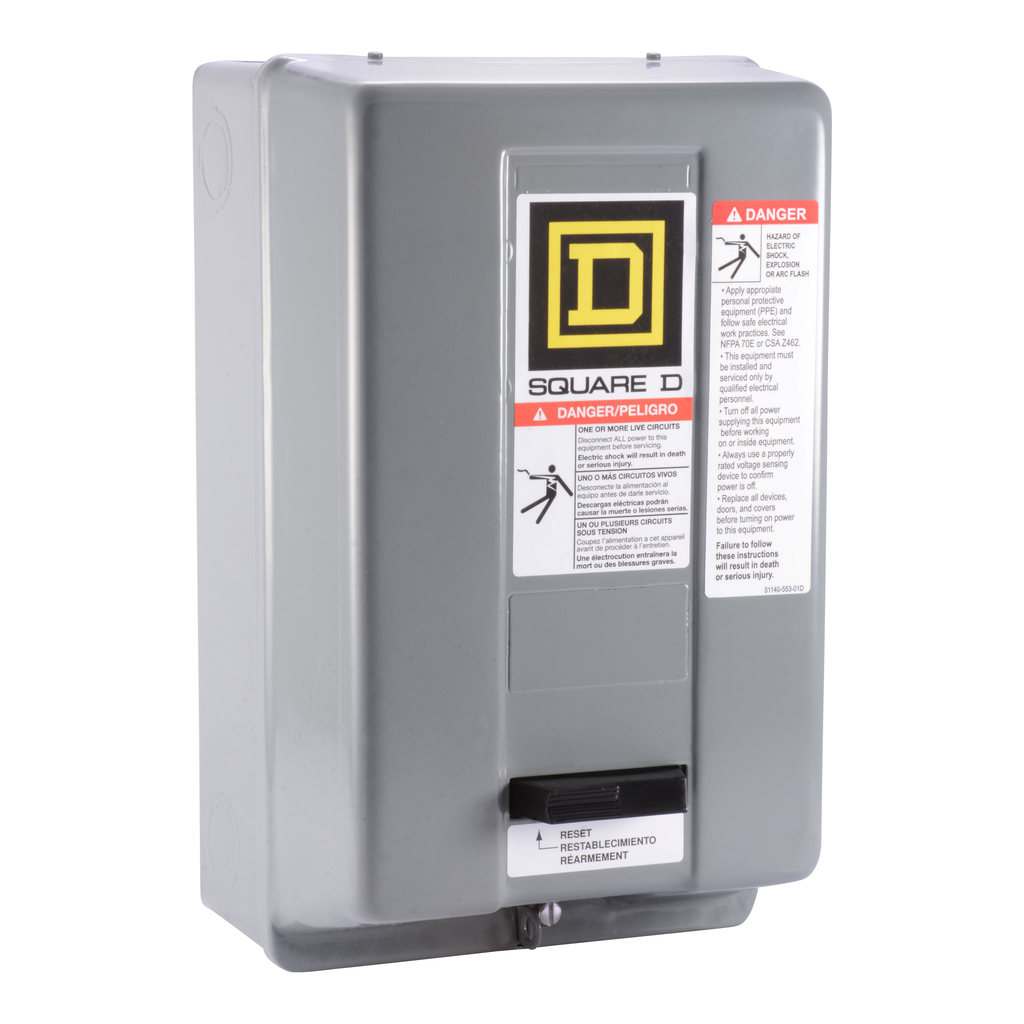

Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 2. This NEMA 1 sheet steel enclosure is painted grey. Enclosure is designed to house the Type S NEMA Size 2 nonreversing starter. Four 1/4 inch screws are used to mount this enclosure. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Eu Rohs Directive | Under investigation |
| Warranty | 18 months |
| Height | 12.69 mm |
| Nema Size | 2 |
| Width | 7.81 in |
| Depth | 6.31 in |
| Country of Origin | Mexico |
| Width | 7.81 in |
| Height | 12.69 mm |
| Product Or Component Type | enclosure |
