9991SDA11
NEMA Contactor and NEMA Motor Starter, Type S, nonreversing, enclosure, for NEMA Size 2, 8903SP and 8903L, NEMA 12/3R

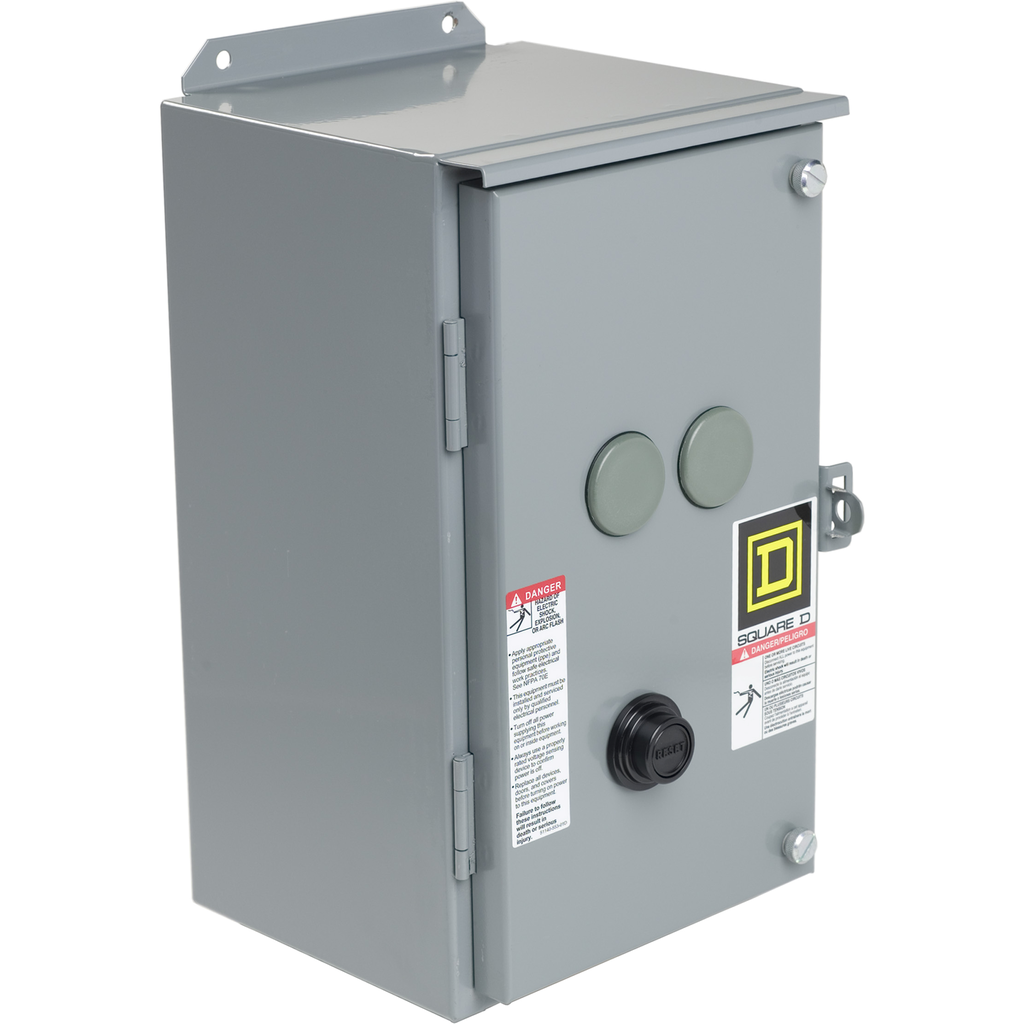

Type S nonreversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S non-reversing magnetic NEMA motor starters are for motor control applications. 8903S and 8903L lighting contactors are for lighting control applications. This enclosure is for 8502S and 8536S size 2 devices and is NEMA 12/3R rated. This enclosure is also for 8903SP and 8903L lighting contactors. This sheet steel enclosure is painted grey. Enclosure is 16.00 inches tall, 8.13 inches wide and 9.28 inches deep.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 8.13 in |
| Height | 16.00 in |
| Product Or Component Type | enclosure |
| Height | 16.00 in |
| Nema Size | 2 |
| Width | 8.13 in |
| Depth | 9.28 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| Warranty | 18 months |
Documents
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Square D Lighting Contactors Catalog - 8903CT9701 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
