9991SCG8

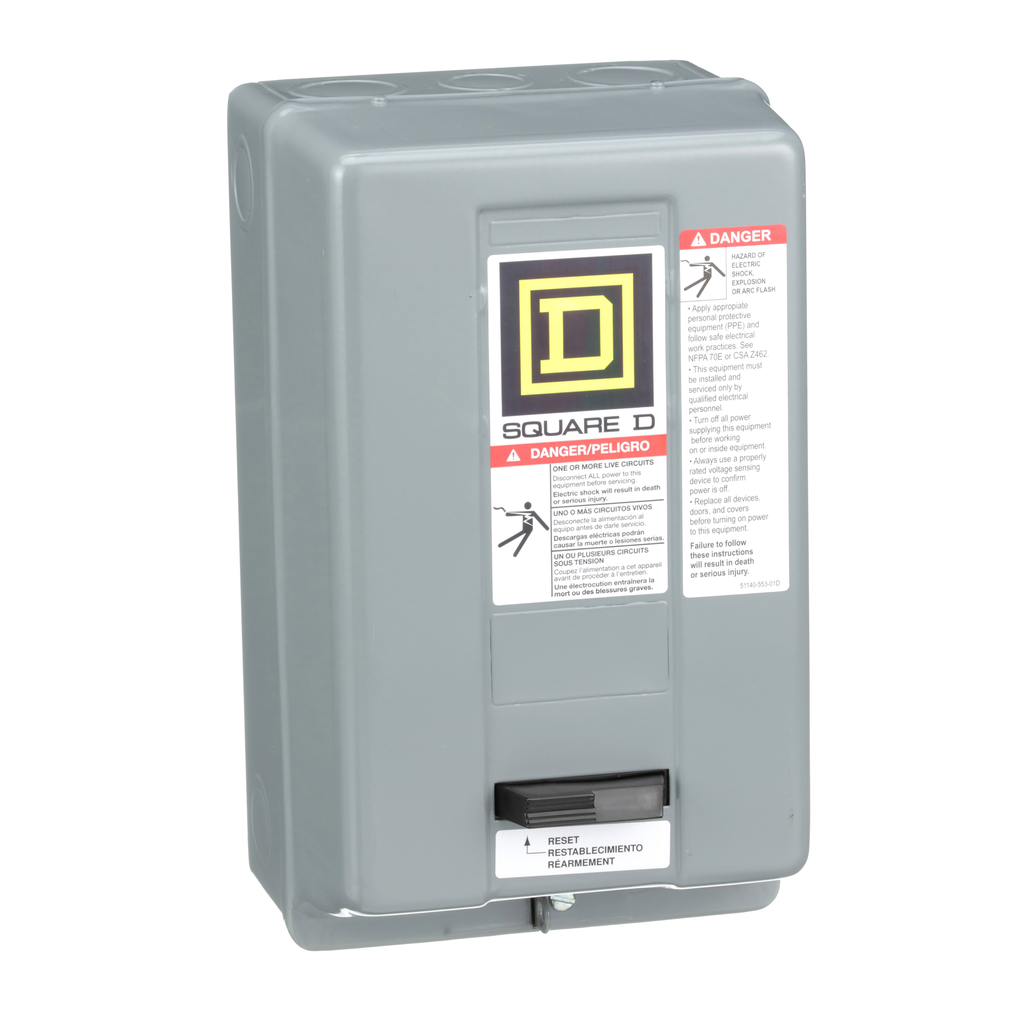

NEMA Motor Starter, Type S, nonreversing, enclosure, for NEMA Sizes 00, 0, 1, NEMA 1
Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 00, 0 or 1. This NEMA 1 sheet steel enclosure is painted grey. Enclosure is designed to house the Type S NEMA Size 00, 0 and 1 nonreversing starters. Three number 10 screws are used to mount this enclosure. Enclosure is 10.00 inches tall, 5.98 inches wide and 5.56 inches deep. This enclosure is CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 254 mm |
|---|---|
| Nema Size |
|
| Width | 152 mm |
| Depth | 141 mm |
| Country of Origin | Mexico |
| Width | 152 mm |
| Height | 254 mm |
| Product Or Component Type | enclosure |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| Warranty | 18 months |
Documents
- Type SD AC Magnetic Contactors and Starters Installation Instructions - 30072-013-11 (pdf)
- Spec Sheet
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
