9991DPG3
Contactor, Definite Purpose, enclosure, for 8910DPA 60A to 75A contactors, NEMA 1

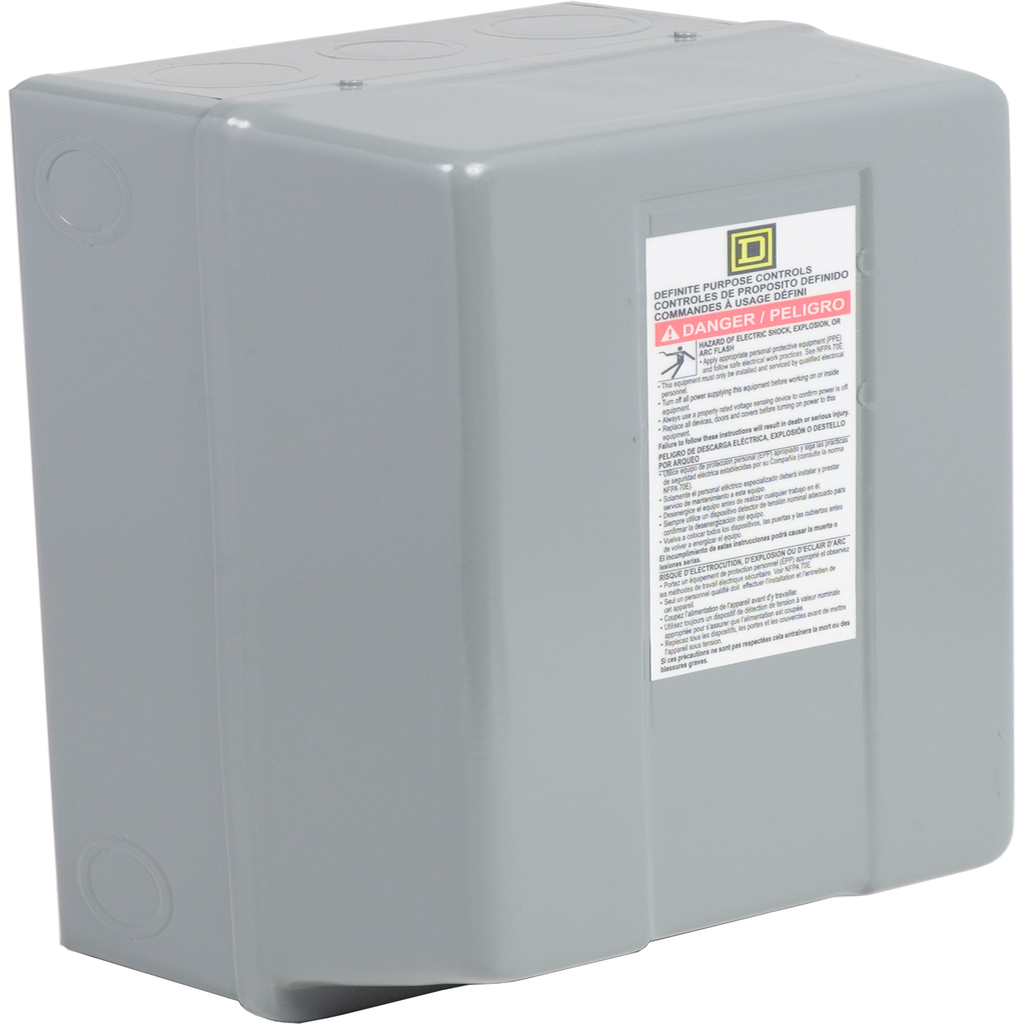

Enclosure is designed to house the 8910DPA definite purpose contactors that are rated 65A to 75A. 8910DP definite purpose contactor enclosure is rated NEMA 1. This sheet steel enclosure is painted grey. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep. Four 1/4 inch screws are used to mount this enclosure. Enclosure is CSA certified. Enclosure is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Height | 12.69 in |
| Width | 7.81 in |
| Depth | 6.31 in |
| Country of Origin | United States |
| Width | 7.81 in |
| Height | 12.69 in |
| Product Or Component Type | enclosure |
Documents
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D Definite Purpose Control Catalog - 8910CT9301 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- Spec Sheet
