Operating mechanism, flange mounted, bracket mount, fixed depth assembly, 200A, 600V, H, K, J, R fuseholder, switch mechanism, 6 inch handle

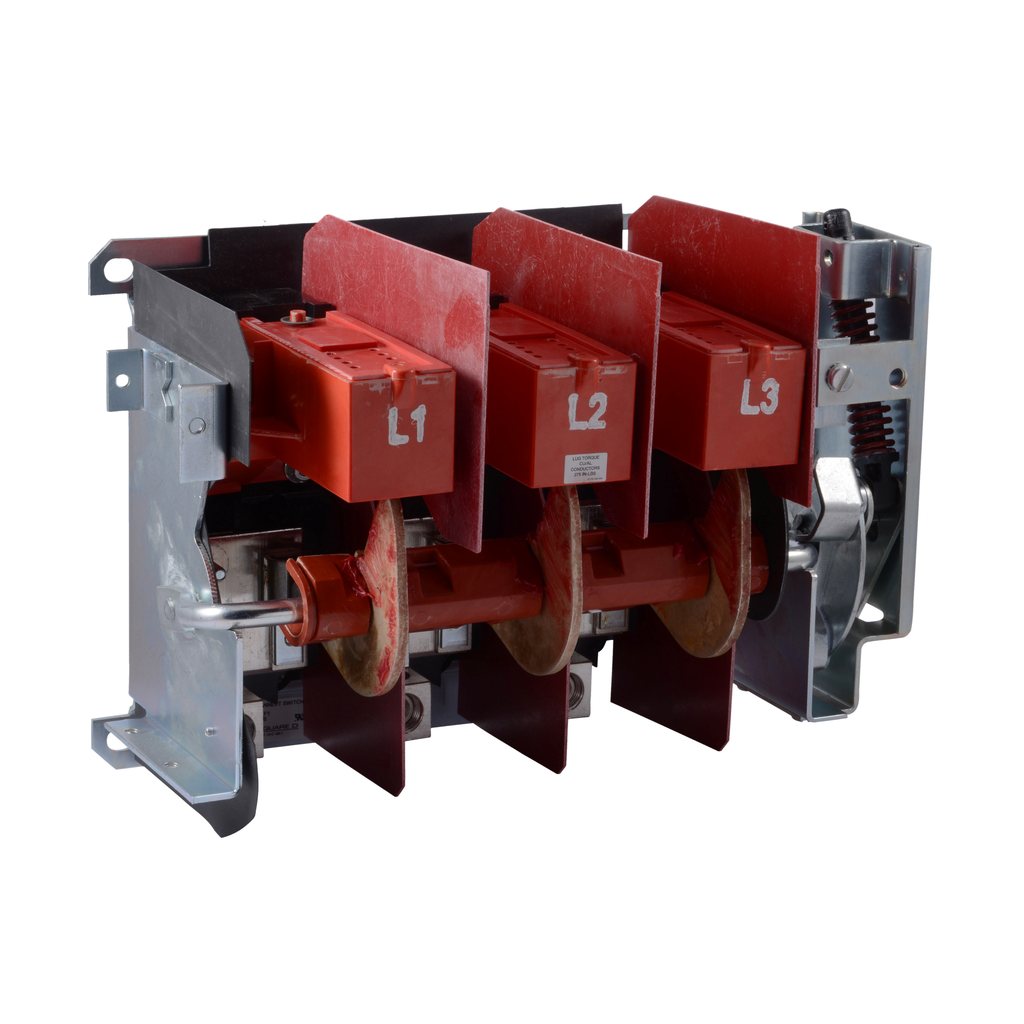

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. This bracket mount mount disconnect switch is rated at 200 A. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 600 VDC. Switch is UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Provided Equipment | 6 in handle included |
| Product Mounting | bracket fixed depth |
| Associated Fuse Rating | 200 A 250/600 V |
| Fuse Type |
|
| Line Rated Current | 200 A |
| Maximum Horse Power Rating |
|
| Country of Origin | Mexico |
| Disconnector Device Type | fusible disconnect switch |
| Range Of Product | 9422T |
| Product Or Component Type | Disconnect Switch |
