9422R1

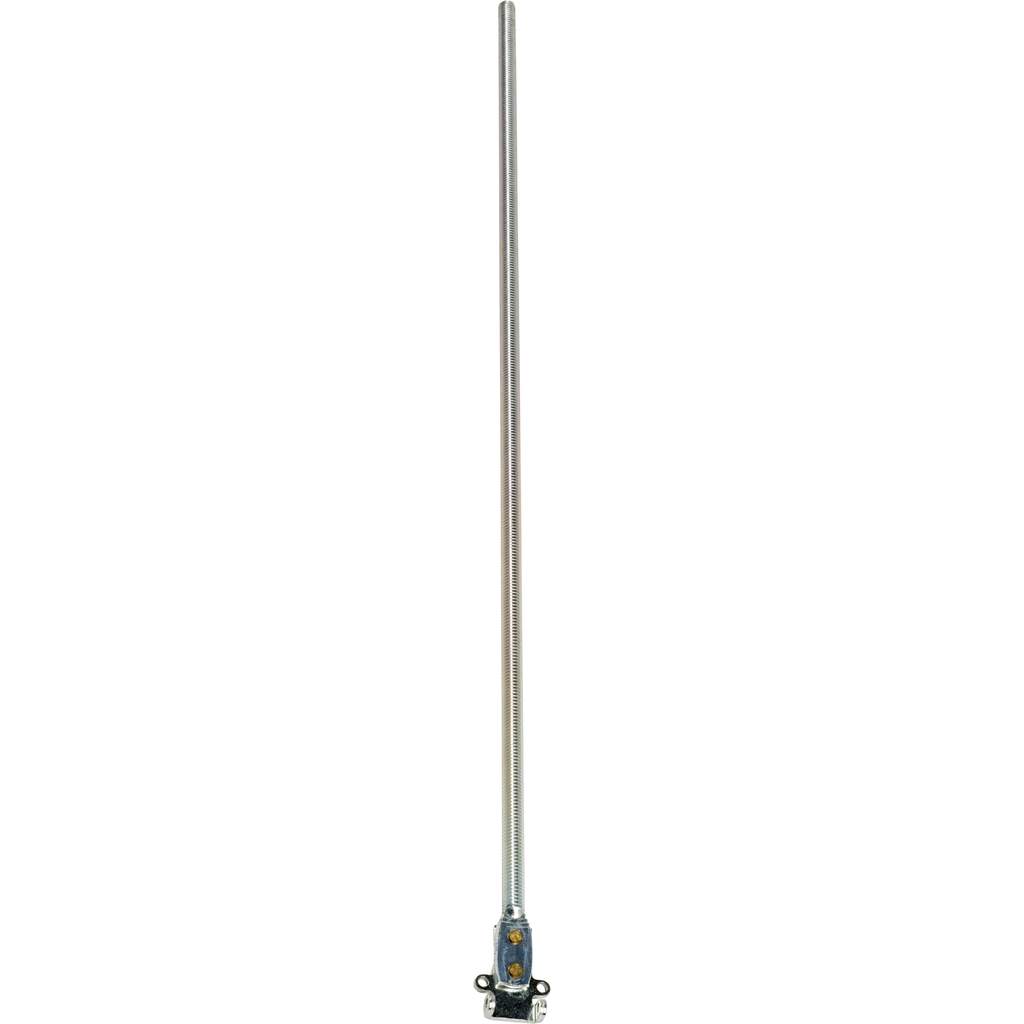

Operating mechanism, flange mounted, variable depth, standard operating rod, 9422 variable depth mechanism
This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This standard operating rod is used in 9422R variable depth operating mechanisms. This standard rod is included with each 9422R or 9422AR mechanism as standard. Two of these kits are required for 9422ARR, 9422RR, 9422ART, 9422RT, 9422ATE, 9422TE, 9422ATF or 9422TF mechanisms.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9422T |
|---|---|
| Product Or Component Type | Disconnect Switch |
| Warranty | 18 months |
| Provided Equipment | ordered separately |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches (FEB 2021) - 0100CT1901_SEC-08_FEB-2021 (pdf)
- Flange-Mounted, Variable-Depth Disconnect Switches Installation Instructions - 30072-009-63 (pdf)
- 9422RN1 Variable Depth Operating Mechanism Installation Instructions - 50006-354-01A (pdf)
- 9422RP1 Variable Depth Operating Mechanism Installation Instructions - 50006-354-02A (pdf)
