9422CSFD33

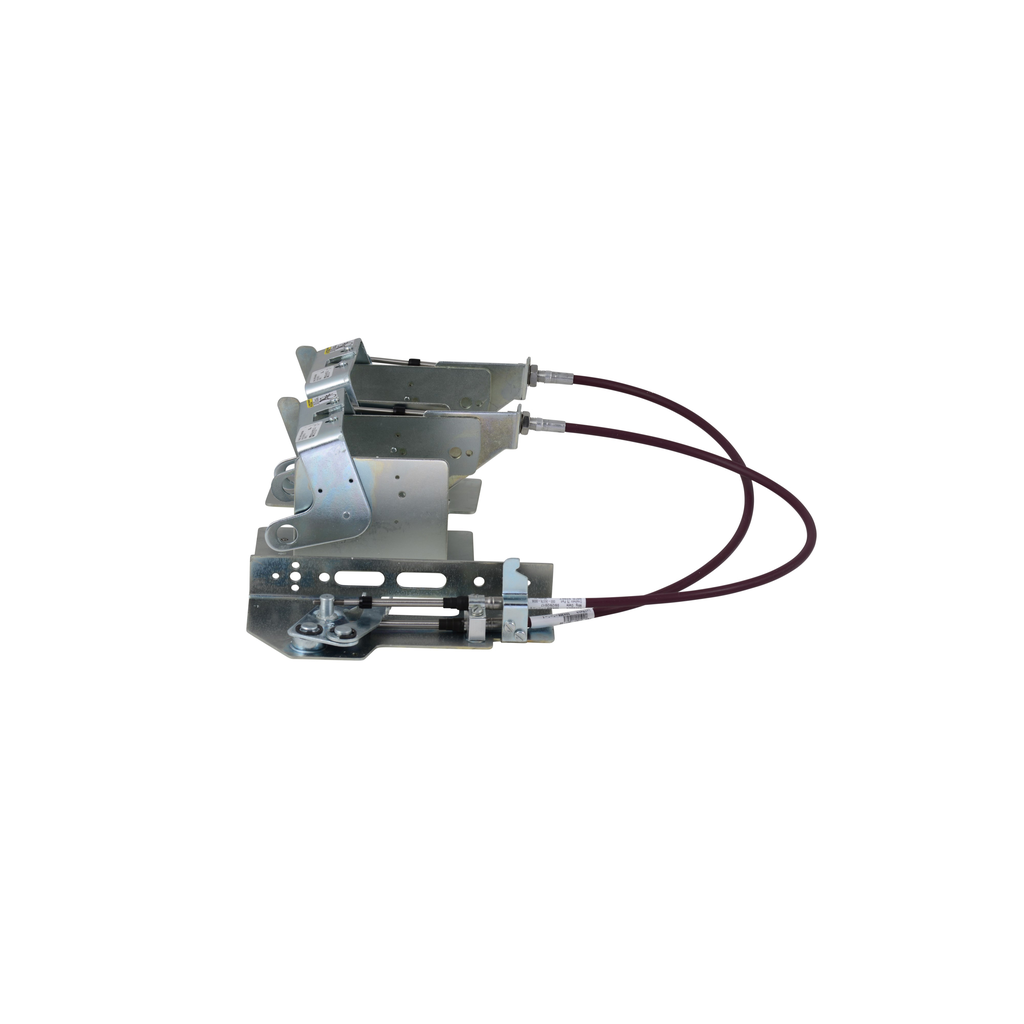

Disconnect mechanism, circuit breaker, dual cable operated, 150/250A, 3 pole, PowerPacT H and J breaker, two 36 inch cables
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Dual cable operating mechanisms are designed for use with Square D circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has two 36 inch long cables. Mechanism will work with Compact NSF, PowerPacT H and PowerPacT J circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. Must use a 9422AP1 or 9422AP2 operating handle with this operating mechanism. Disconnect switch is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Cables | 2 |
|---|---|
| Cable Length | 36 in and 36 in |
| Provided Equipment | ordered separately |
| Circuit Breaker Name |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Country of Origin | Mexico |
| Range Of Product | 9422C |
| Product Or Component Type | Dual Cable Operating Mechanism |
| Warranty | 18 months |
