9422CSF304

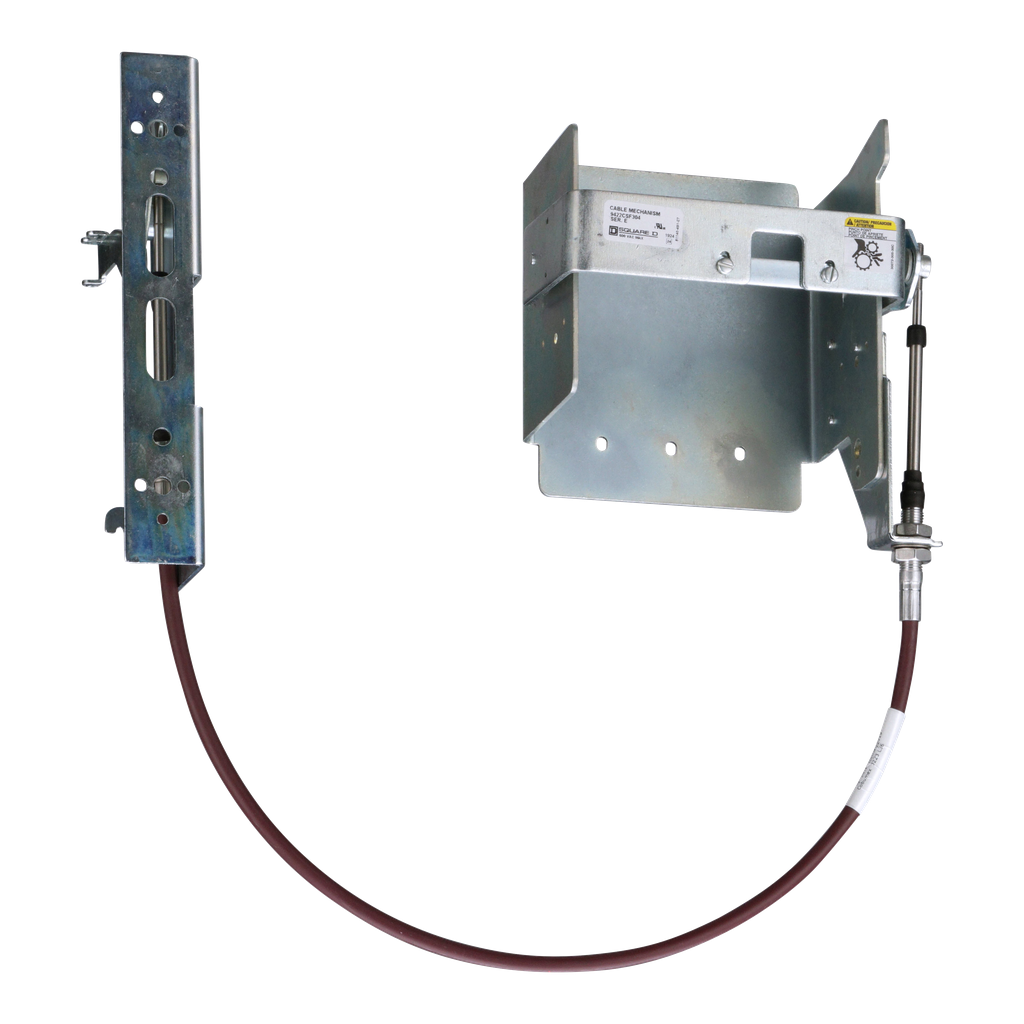

Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with MG-NSF circuit breakers. This mechanism can be used with 250A 4 pole MG-NSF circuit breakers. This mechanism has a 36 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | Mexico |
| Range Of Product | 9422C |
| Product Or Component Type | Single Cable Operating Mechanism |
| Number Of Cables | 1 |
| Cable Length | 36 in |
| Circuit Breaker Name | MG-NSF 4 |
| Provided Equipment | ordered separately |
| Warranty | 18 months |
