9422CSBD1

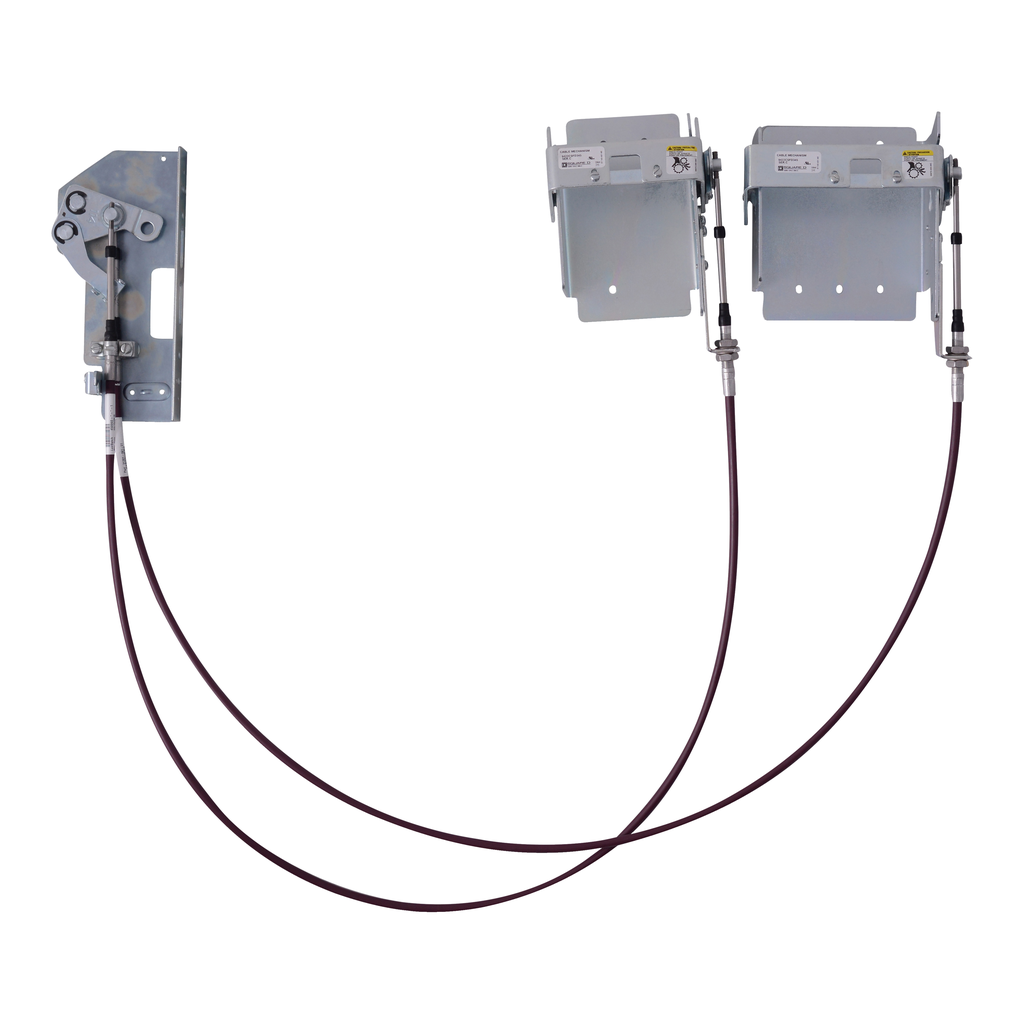

Disconnect mechanism, circuit breaker, dual cable operated, 125A, 3 pole, PowerPacT B breaker, two 120 inch cables
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Dual cable operating mechanisms are designed for use with Square D circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. This mechanism has two 120 inch long cables. Mechanism will work with PowerPacT B circuit breakers. PowerPacT B circuit breaker has a frame size of 125 A. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Cable operated mechanism is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Number Of Cables | 2 |
| Cable Length | 120 in and 120 in |
| Circuit Breaker Name |
|
| Country of Origin | Mexico |
| Range Of Product | 9422C |
| Product Or Component Type | Dual Cable Operating Mechanism |
