9422CFT30

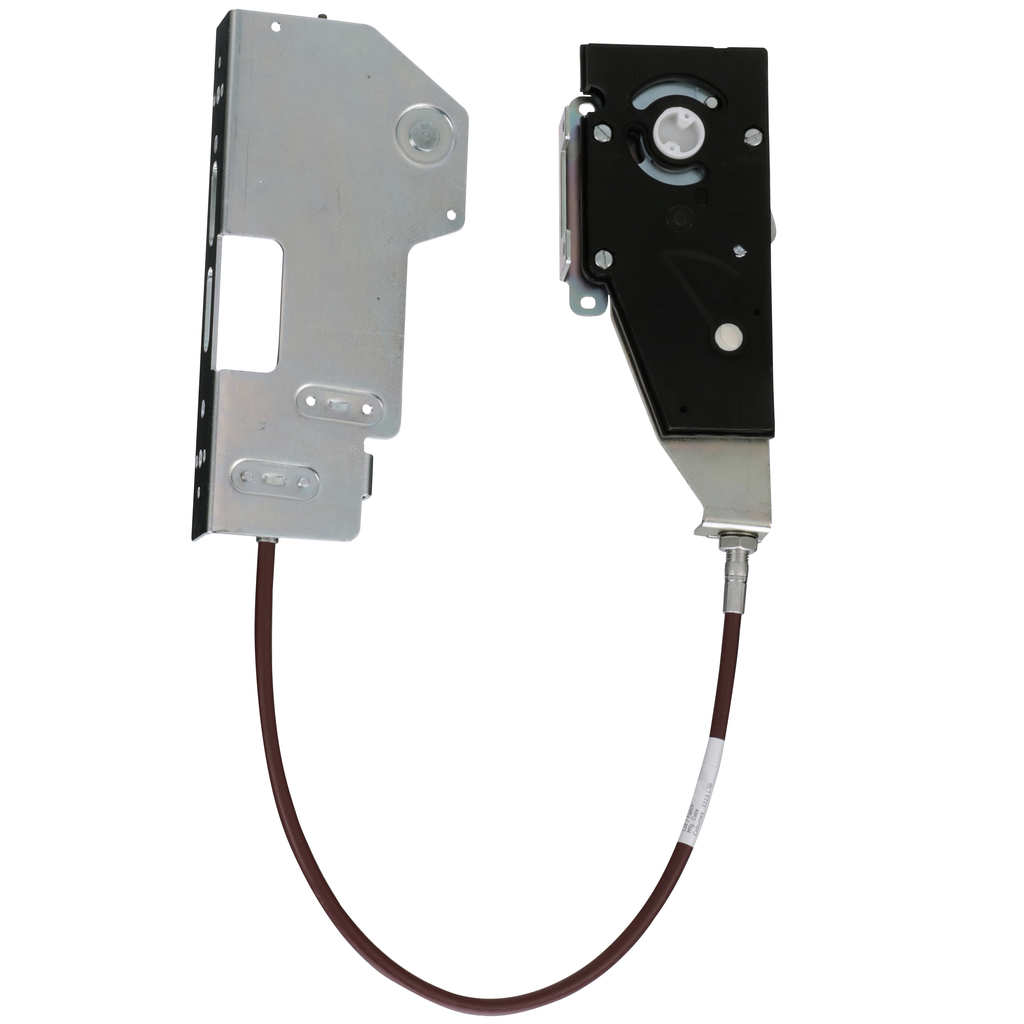

Disconnect mechanism, cable operated, cable operator, 36 inch cable, for 9422TCF, TCN, TDF, TDN, TEF or TEN switch
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The cable mechanism has a cable length is 36 inches. 9422A1, 9422A2, 9422A3 or 9422A4 operating handle is ordered separately. 9422A1 operating handle is ordered separately.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Country of Origin | Mexico |
| Product Destination |
|
| Range Of Product | 9422C |
| Product Or Component Type | Single Cable Operating Mechanism |
| Number Of Cables | 1 |
| Cable Length | 36 in |
| Provided Equipment | ordered separately |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
