9422ARR11

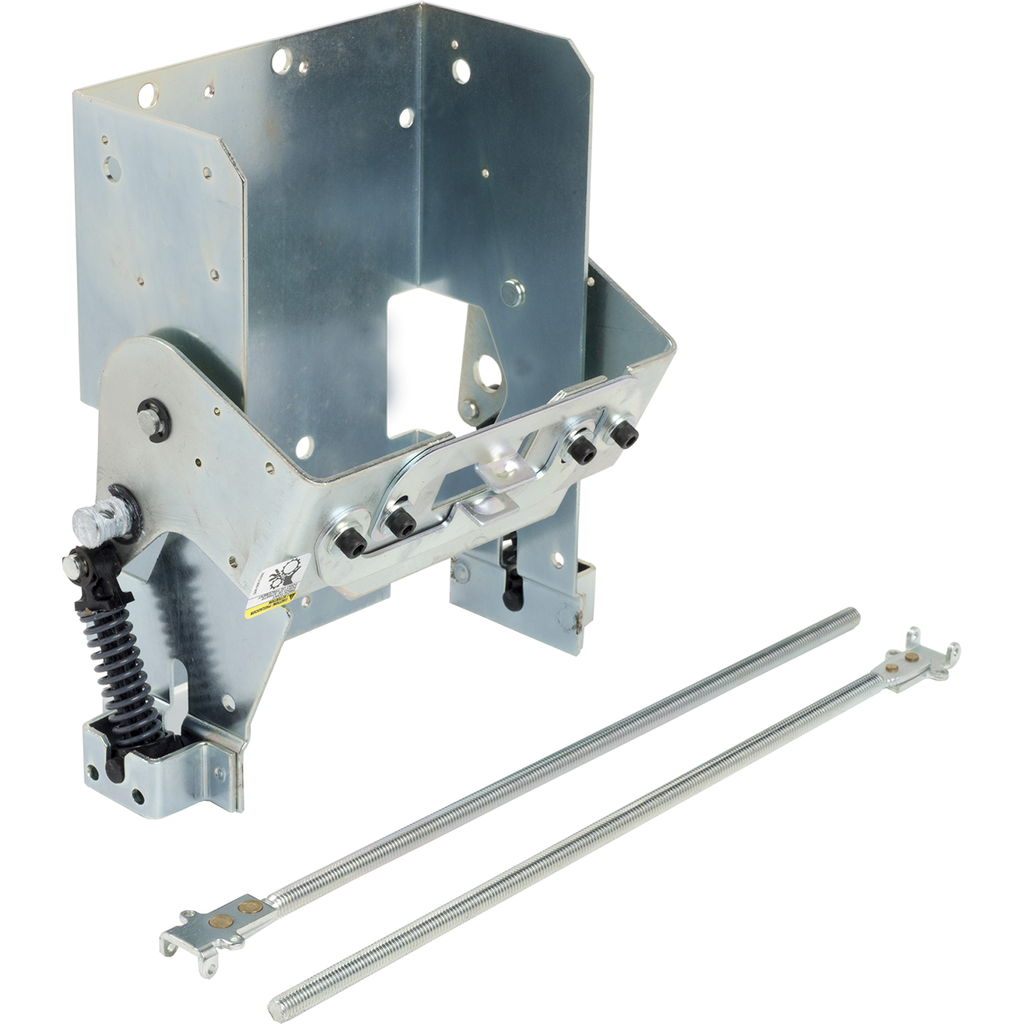

Disconnect mechanism, circuit breaker, variable depth, 400A, 2 or 3 pole, operator and 6 inch handle, LAL, LHL breakers
This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole LAL or LHL circuit breaker with a 400A frame size. The variable depth mounting range is 7.44 to 18.25 inches. A 9422A2 handle mechanism is included with this mechanism. Operating mechanism is UL Component Recognized and CSA certified
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Country of Origin | Mexico |
| Product Certifications |
|
| Range Of Product | 9422R |
| Provided Equipment | 6 in handle included (9422A1) |
| Circuit Breaker Name |
|
| Product Or Component Type | Circuit Breaker Mechanism |
| Product Mounting | flange rod variable depth |
| Warranty | 18 months |
