9422AP9
Operating mechanism, flange mounted, variable depth, handle mechanism, 10 inch handle, NEMA 1, 3R, 4 sheet steel, 12 enclosure

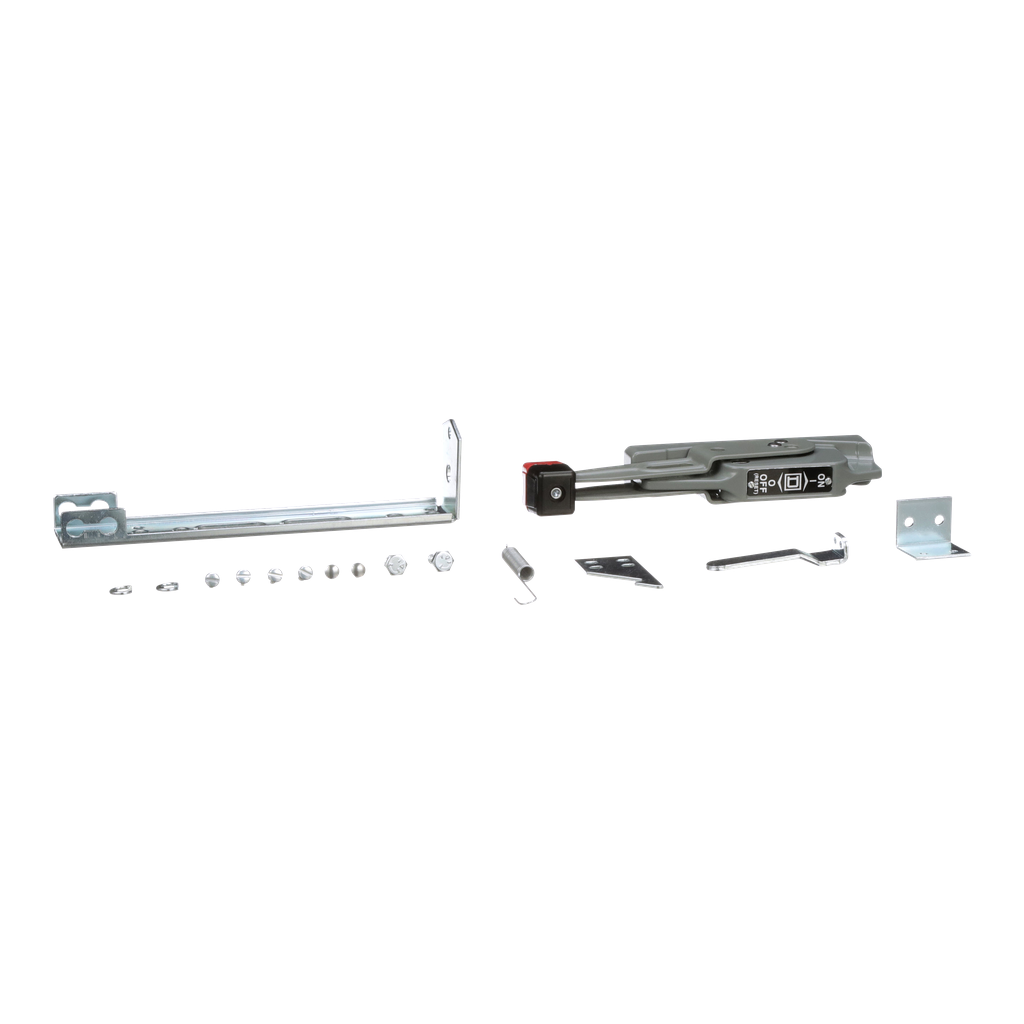

Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Operating handle mechanism is for use with 9422RM1 and 9422CMP circuit breaker mechanisms only. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is suitable for right or left hand flange mounting. Handle mechanism has a 10 inch handle. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | Mexico |
| Length | 10 in |
| Product Destination |
|
| Product Or Component Type | Handle Mechanism |
| Product Destination |
|
| Length | 10 in |
| Product Compatibility | NEMA 1/3/3R/4/12 enclosures |
| Specificity Of Operator | variable depth |
