9422A1

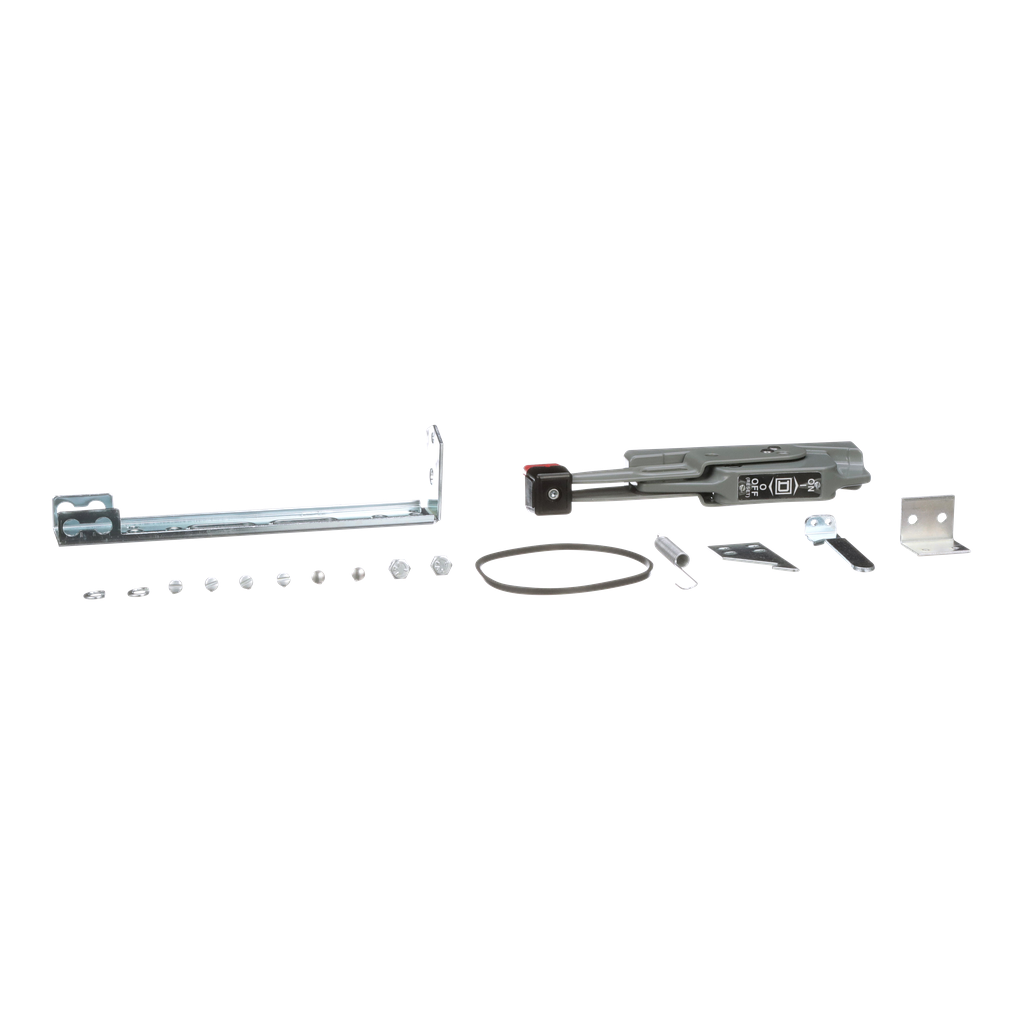

Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Product Destination |
|
| Length | 6 in |
| Net Weight | 1.26 kg |
| Product Compatibility | NEMA 1/3/3R/4/12 enclosures |
| Specificity Of Operator | variable depth |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Length | 6 in |
| Weight | 1.26 kg |
| Product Destination |
|
| Product Or Component Type | Handle Mechanism |
