Operating Mechanism, Type LZ, door mount, 250A mechanism, 3 inch handle, standard shaft, for PowerPact C, H, J and NSF

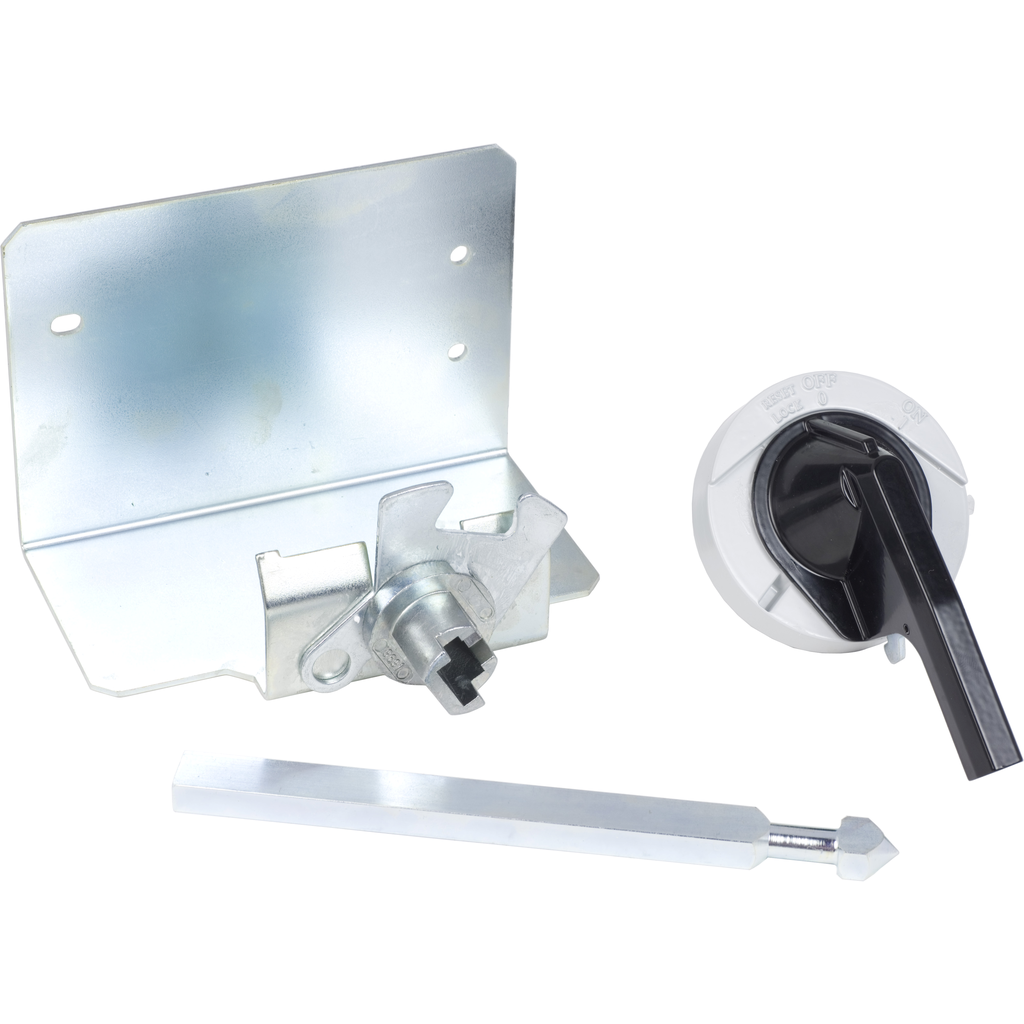

Type L door mounted, variable depth operating mechanisms feature heavy duty and all metal construction. They include trip indication for easy visual identification. These door mount operating mechanism kits include an operating mechanism, an operating handle and an operating shaft. The proper circuit breaker must be purchased separately. The operating mechanism in this kit will work with PowerPacT C, H, J and NSF circuit breakers up to 250 A. Kit contains a 3 inch long painted handle that is rated NEMA 1/3/3R/4. The kit contains a standard shaft. Mounting depth for this kit is 5.50 inches to 10.75 inches. Kit is UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Mexico |
| Range Of Product | 9421L |
| Circuit Breaker Name |
|
| Product Or Component Type | Operating Mechanism |
| Warranty | 18 months |
