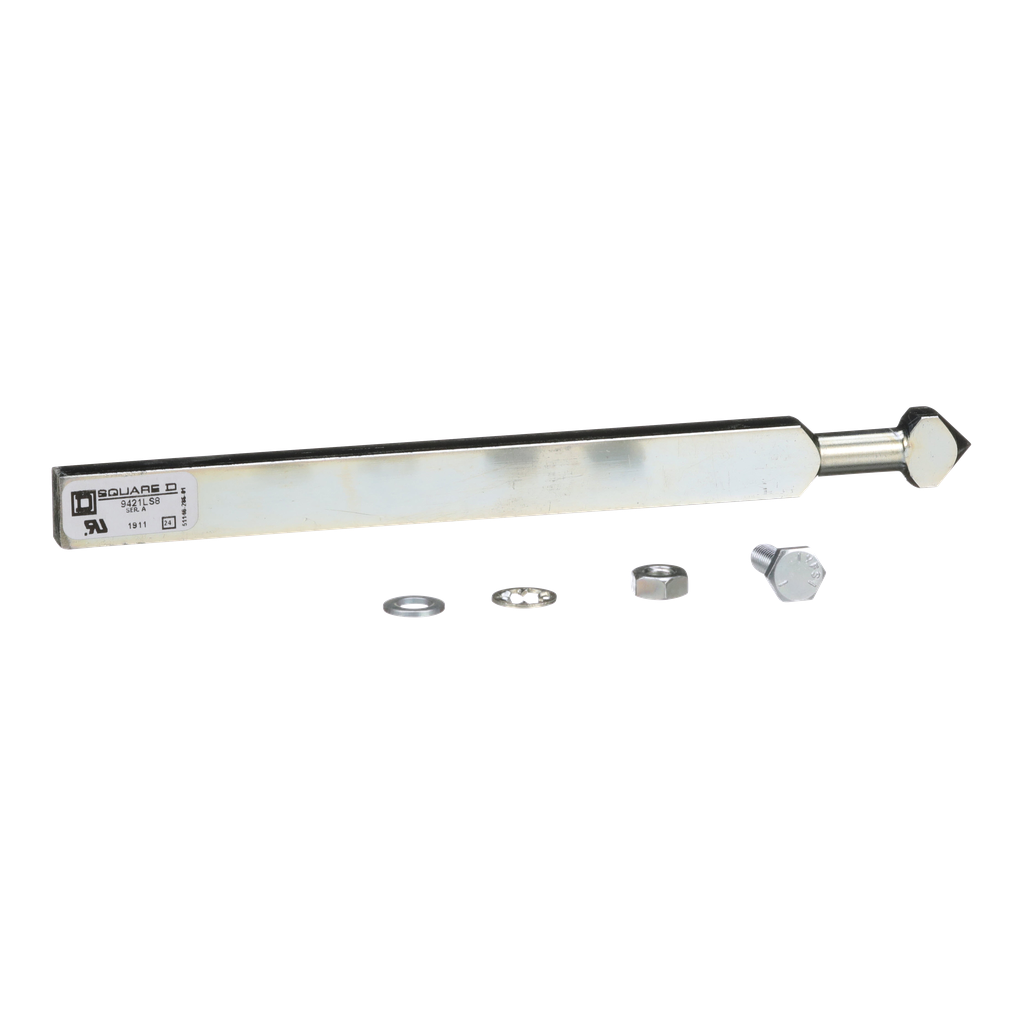

9421LS8
Circuit breaker accessory, PowerPacT B/H/J/L/M/P, handle, rotary, 125A to 1200A, NEMA 1/3R/12, short shaft
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This standard shaft replacement also fits PowerPacT B, H, J, and L circuit breaker operating mechanisms. The mounting shaft depth is 7.2in to 11.625in. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Mexico |
| Product Destination | All 9421L operating mechanisms |
| Range Of Product | 9421L |
| Product Or Component Type | shaft |
| Shaft Type | standard |
| Warranty | 18 months |
Documents
- Door-Mounted Operating Mechanism, 9421LD Installation Instructions - 50006-557-01_03 (pdf)
- Class 9421 Type L Door Mounted Operating Mechanism Installation Instructions - 50006-309-01 (pdf)
- Door-Mounted Operating Mechanism Kit Installation Instructions - 50006-520-01 (pdf)
- 9421L Door Mounted Operating Mechanisms Installation Instructions - 50006-017-02G (pdf)
- F-Frame to PowerPacT B-Frame Mounting Conversion Kit - Installation Instructions - NVE99161 (pdf)
- Door-Mounted Operating Mechanism, 9421LZ Installation Instructions - 50006-715-01_01 (pdf)
- Door-Mounted Operating Mechanism Kits Installation Instructions - 50006-716-01 (pdf)
- Door Mounted Operating Mechanisms for Class 9421 Type LG7 for use with Square D Type GJL Circuit Breakers, Installation Instructions - 50006-419-02 (pdf)
- PowerPacT B Door Mounted Operating Mechanism Installation Instructions - NVE47392-03 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- Supplemental Catalog 15: Operating Mechanisms and Disconnect Switches (2019) - SD_0100CT1902_SEC-15 (pdf)
