9421LS10

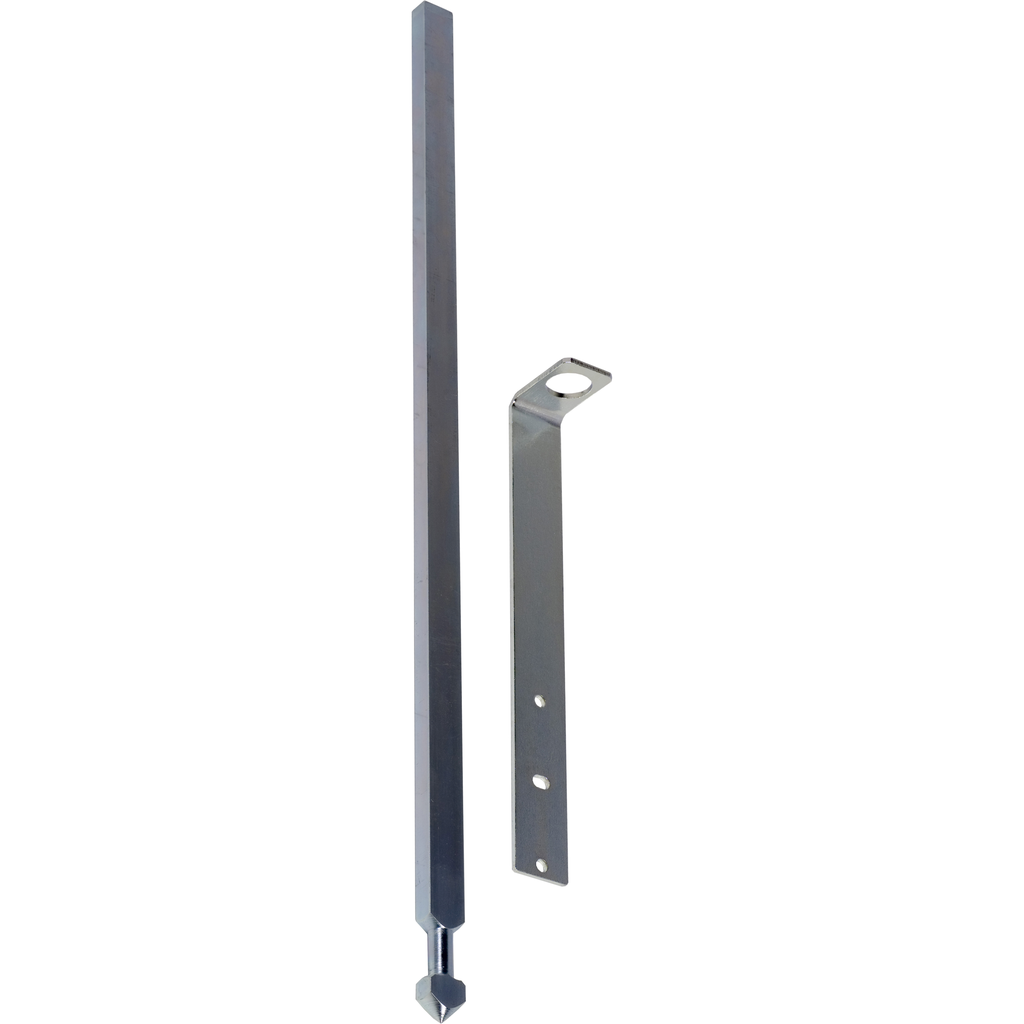

Circuit breaker accessory, PowerPacT M/P, handle, rotary, 800A to 1200A, NEMA 1/3R/12, long shaft, with support bracket
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This is a long shaft replacement part. The mounting shaft depth is 7.2in to 22.25in. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Country of Origin | Mexico |
| Product Destination | 9421LL1, LM1, LX7 or LW7 operating mechanism |
| Range Of Product | 9421L |
| Product Or Component Type | shaft |
| Shaft Type | long |
| Warranty | 18 months |
