9421LH8

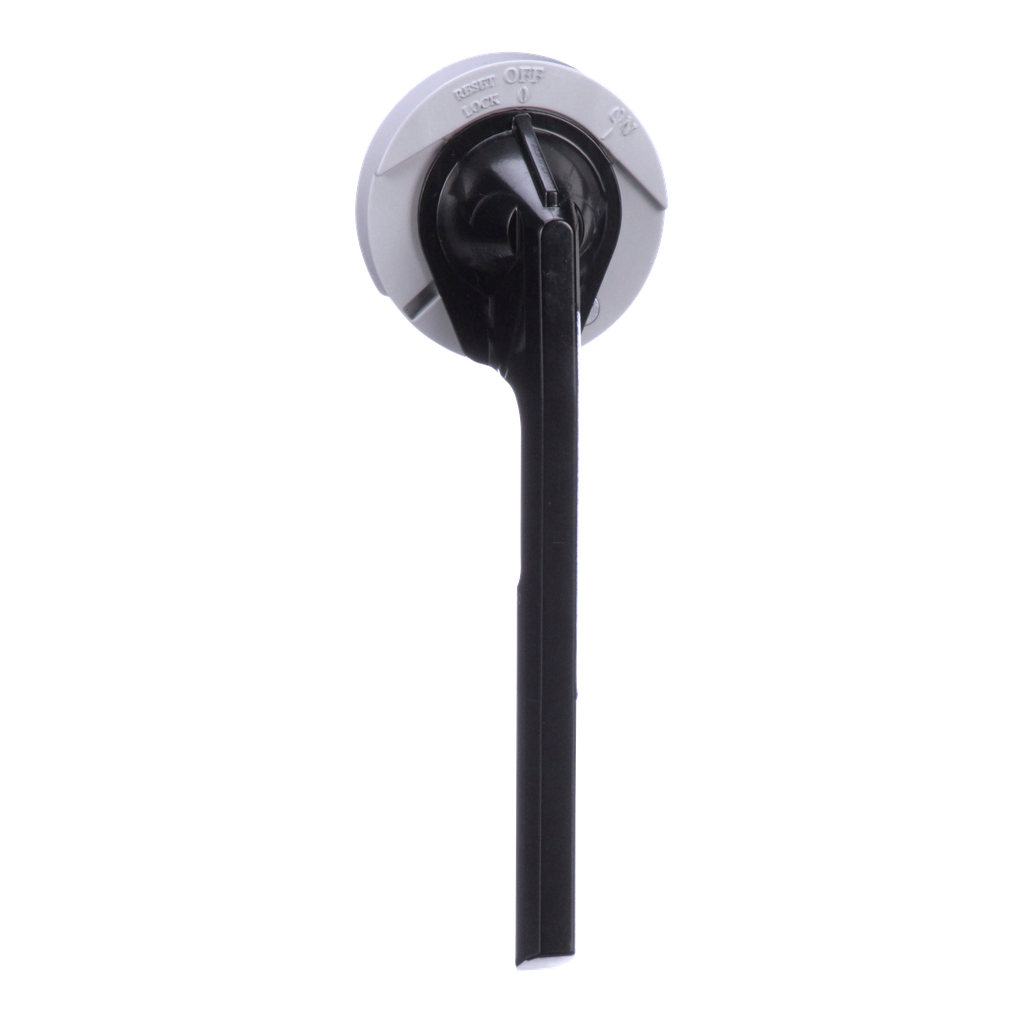

Circuit breaker accessory, handle assembly, rotary, 8 inch, NEMA 1/3R/12, for legacy circuit breakers, painted black
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly was for legacy circuit breakers. This handle assembly has an 8 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. This handle assembly is UL Component Recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Destination | 9421LM1 or LX7 operating mechanism |
| Length | 8 in |
| Surface Finish | painted Black |
| Product Compatibility | NEMA 1/3R/12 enclosure |
| Country of Origin | Mexico |
| Length | 8 in |
| Product Or Component Type | Handle Assembly |
| Warranty | 18 months |
Documents
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Supplemental Catalog 15: Operating Mechanisms and Disconnect Switches (2019) - SD_0100CT1902_SEC-15 (pdf)
- Class 9421 Type L Door Mounted Operating Mechanism Installation Instructions - 50006-309-01 (pdf)
- Door-Mounted Operating Mechanism Kit Installation Instructions - 50006-520-01 (pdf)
- Spec Sheet
