9421LCP48

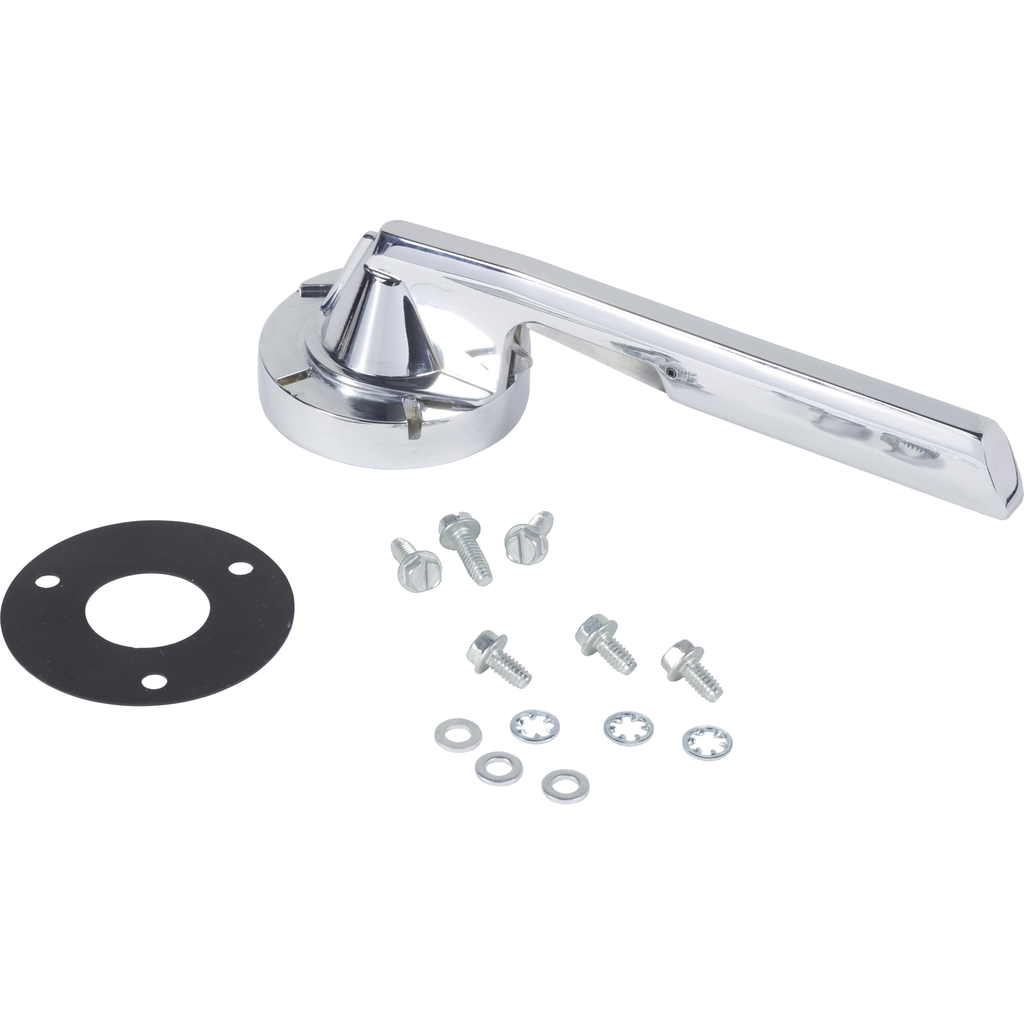

Circuit breaker accessory, PowerPacT M/P, handle assembly, rotary, 6 inch, 800A to 1200A, NEMA 3/4/4X, chrome plated
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This handle assembly is for NEMA 3, 4, and 4X enclosures. The handle assembly has a chrome plated 8 inch handle. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Destination | 9421LW7 operating mechanism |
| Length | 8 in |
| Surface Finish | chrome plated |
| Product Compatibility | NEMA 1/3R/4/4X/12 enclosure |
| Warranty | 18 months |
| Country of Origin | United States |
| Length | 8 in |
| Product Or Component Type | Handle Assembly |
Documents
- Door-Mounted Operating Mechanism, 9421 Installation Instructions - 50006-717-01_02 (pdf)
- Spec Sheet
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
