9080LBC162101

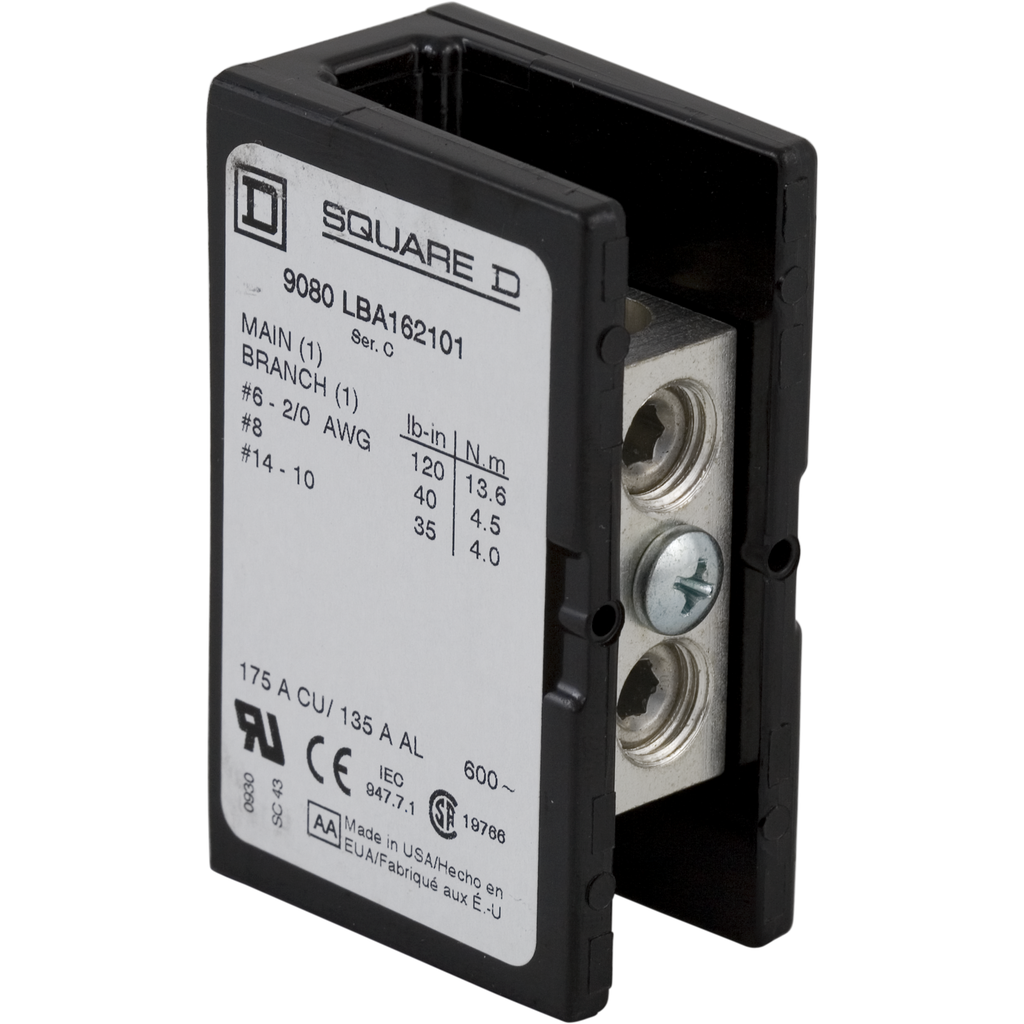

Power distribution block, Linergy, 1 pole, 1 line, 1 load, 150A Cu, 600V
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #18 to 1/0 copper wire. The load side lug is rated to accept one #18 to 1/0 copper wire. The lugs are made of copper. The lugs are rated for 150 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Ambient Air Temperature For Operation | -40-302 °F |
| Height | 2.88 in |
| Mounting Support | surface mount |
| Electrical Connection | tin plated copper lugs |
| Connections - Terminals |
|
| Wire Stripping Length |
|
| Number Of Cables |
|
| Material | phenolic: block |
| Width | 1.13 in |
| Depth | 1.78 in |
| Product Compatibility | 9080LB21 |
| Number Of Poles | 1 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Number Of Terminals |
|
| Country of Origin | United States |
| Width | 1.13 in |
| Height | 2.88 in |
| Range Of Product | 9080LB |
| Product Or Component Type | Power Distribution Block |
| Short-Circuit Current | 65 kA |
| Line Rated Current | 150-150 A copper |
