9080LBA363206

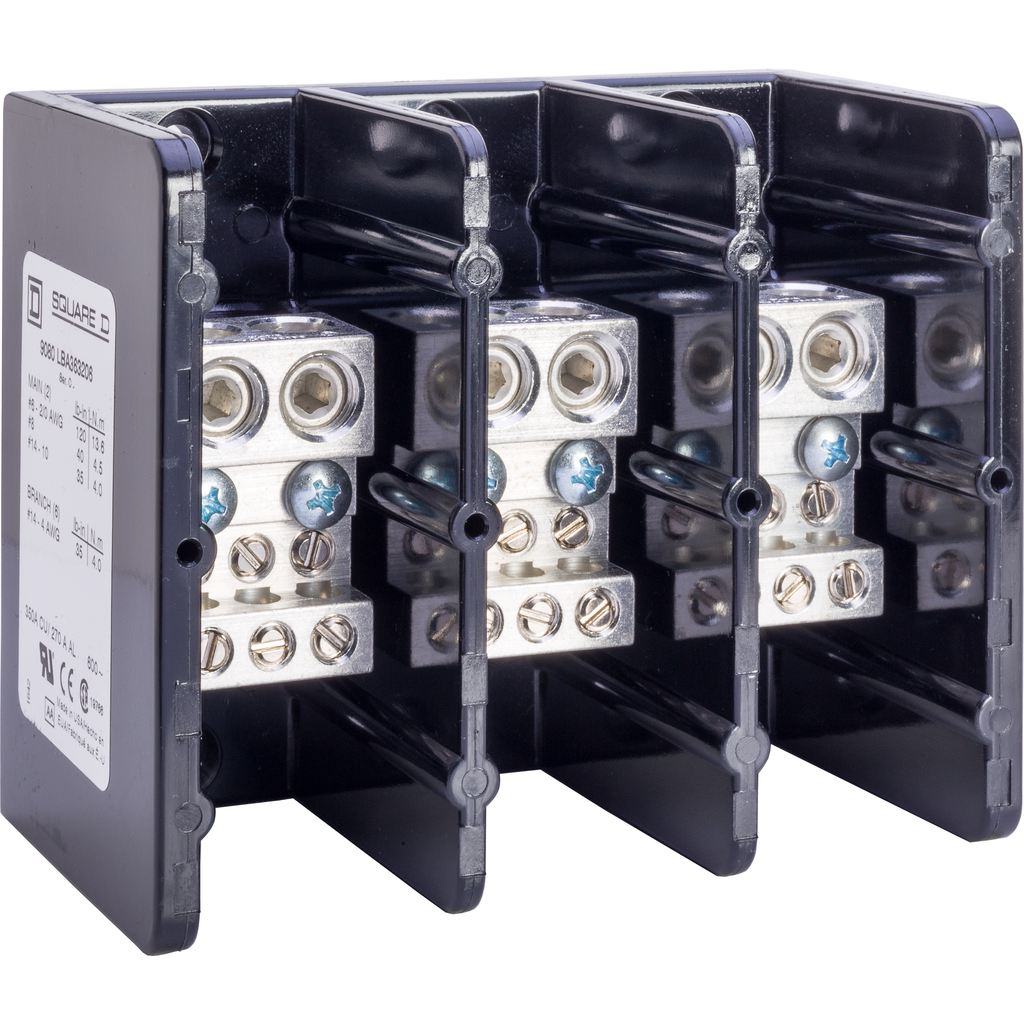

Power distribution block, Linergy, 3 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 350 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Ambient Air Temperature For Operation | -40-302 °F |
| Height | 4 in |
| Mounting Support | surface mount |
| Electrical Connection | tin plated aluminium lugs |
| Connections - Terminals |
|
| Wire Stripping Length |
|
| Number Of Cables |
|
| Material | phenolic: block |
| Width | 5 in |
| Depth | 2.61 in |
| Product Compatibility | 9080LB33 |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Number Of Terminals |
|
| Country of Origin | United States |
| Width | 5 in |
| Height | 4 in |
| Range Of Product | 9080LB |
| Product Or Component Type | Power Distribution Block |
| Short-Circuit Current | 65 kA |
| Line Rated Current |
|
