9080GMR6 - Terminal block, Linergy, box lug connector, red colored block, 30A, 600V

9080GMR6

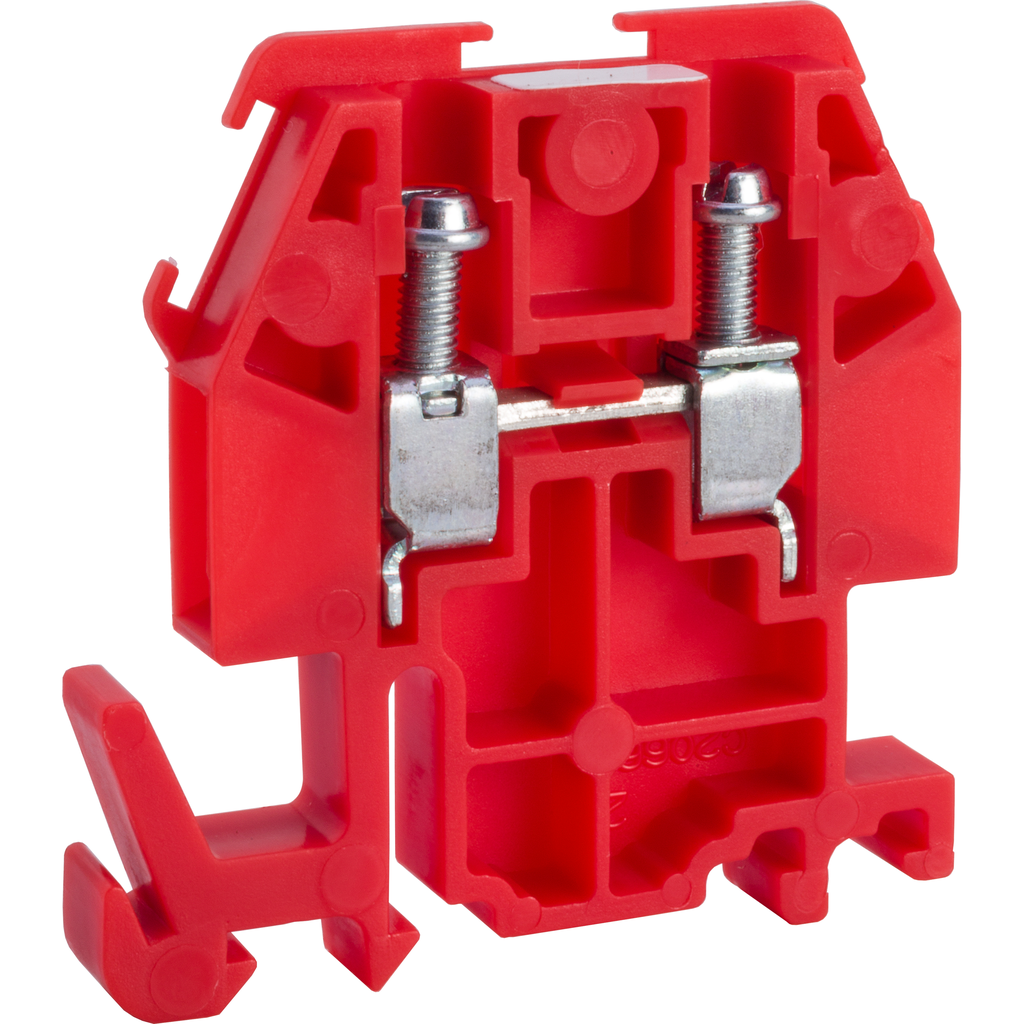

Terminal block, Linergy, box lug connector, red colored block, 30A, 600V

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in red. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Number Of Terminal Blocks	51 per foot
Product Certifications	UL recognized E60616 CCN XCFR2 CSA file 62144 class 6228 01 CE
Ambient Air Temperature For Operation	-40-257 °F
Height	1.82 in
Connections - Terminals	lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
Mounting Support	35 mm DIN rail 9080GH track
Electrical Connection	zinc plated steel box lugs
Line Rated Current	30-30 A UL 30-30 A CSA
Awg Gauge	AWG 22...AWG 10 copper
Width	1.72 in
Depth	0.235 in
Product Compatibility	GM6B
Protection Type	fingersafe DIN 57470
[Ue] Rated Operational Voltage	600 V AC/DC
Country of Origin	United States
Width	1.72 in
Height	1.82 in
Range Of Product	9080G
Localisation On Device	standard
Product Or Component Type	terminal block
Color	Red
Quantity Per Set	set of 50
Warranty	18 months
