9080GE6

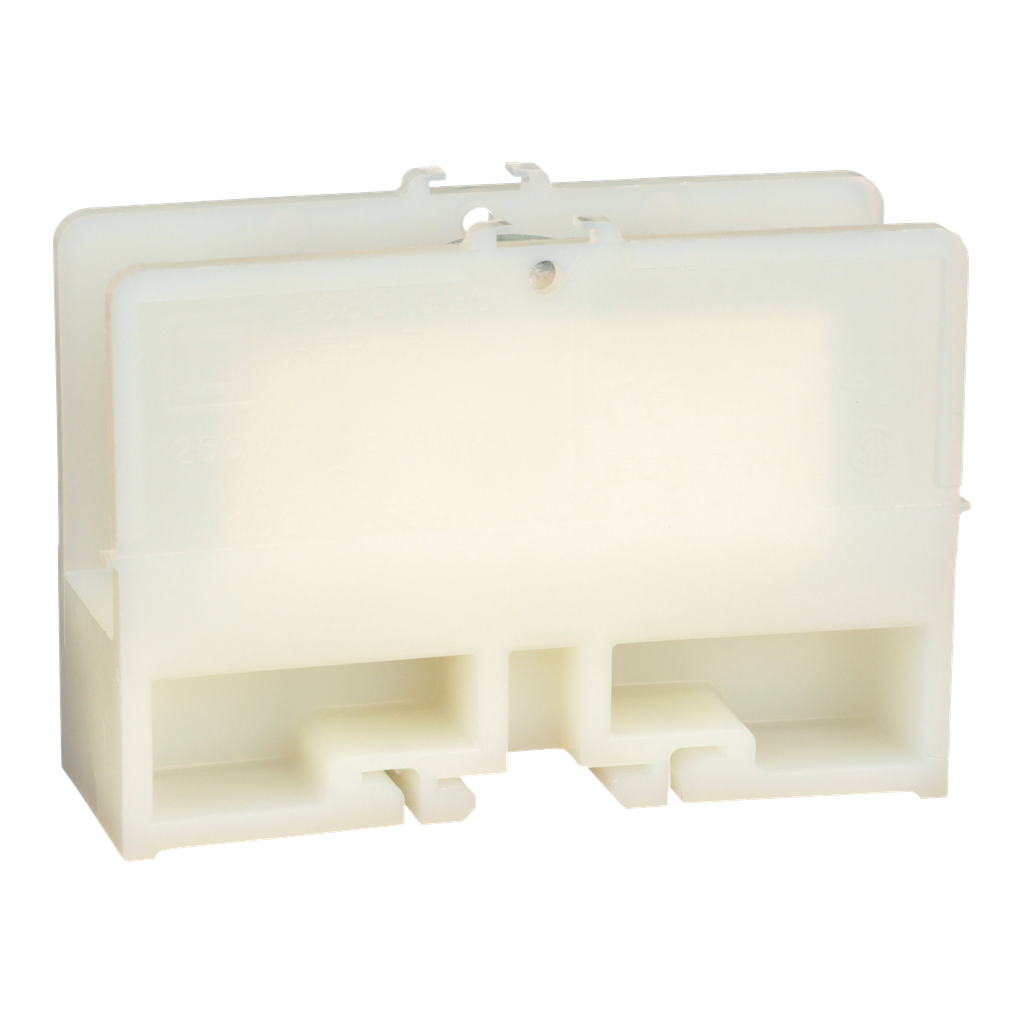

Terminal block, Linergy, box connector, natural colored block, 255A, 600V
2510M manual motor starters are designed for manual On Off control for small motors. This three pole starter is rated for 7.5 HP at 230 VAC and 10 HP at 480 VAC three phase motors. This starter is NEMA M-1 rated. Each lug accepts one 250 kcmil, 4/0, 3/0, 2/0, 1/0, #1 AWG, #2 AWG, or #4 AWG wire. 2510M manual starters can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 12 dust tight and drip tight enclosure. Enclosure as a provision to allow padlocking of this device. 2510M manual starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Number Of Terminal Blocks | 10 per foot |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-257 °F |
| Height | 2.34 in |
| Connections - Terminals | lug tin plated aluminium 225-250 lbf.in : AWG 6...250 kcmil copper or aluminium) |
| Mounting Support |
|
| Electrical Connection | tin plated aluminium box lugs |
| Line Rated Current |
|
| Awg Gauge | AWG 6...250 kcmil aluminium/copper |
| Width | 3.32 in |
| Depth | 1.17 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Country of Origin | Mexico |
| Width | 3.32 in |
| Height | 2.34 in |
| Range Of Product | 9080G |
| Localisation On Device | standard |
| Product Or Component Type | terminal block |
| Color | natural |
| Quantity Per Set | set of 10 |
| Warranty | 18 months |
