9080GD6B

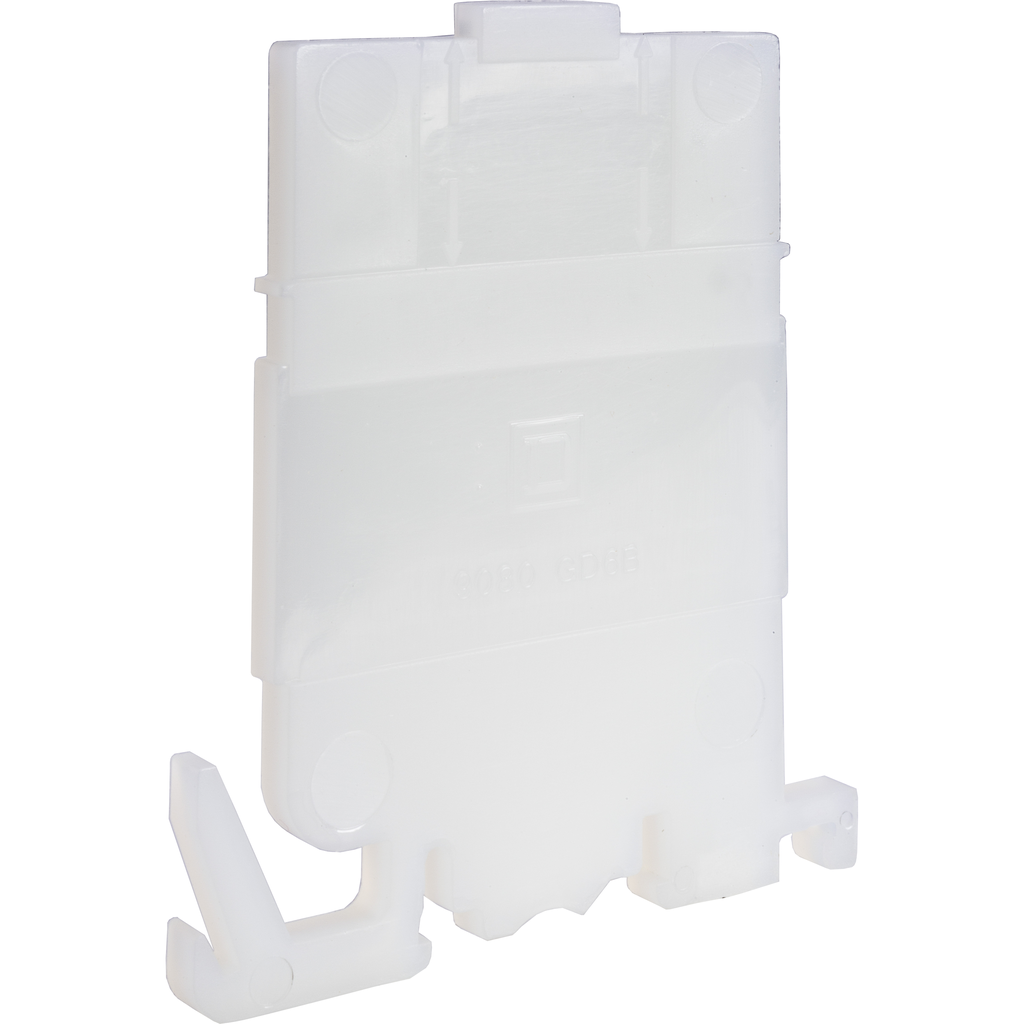

Terminal block, Linergy, end barrier, natural color, for 9080GD6 terminal block
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GD6 terminal block. An end barrier is required at the end of all assemblies of 9080 GD6 blocks to meet UL and CSA requirements. The nylon end barrier is molded in the natural color of nylon (off white).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 9080G |
|---|---|
| Product Or Component Type | End Barrier |
| Warranty | 18 months |
| Height | 2.55 in |
| Color | natural |
| Mounting Support |
|
| Quantity Per Set | set of 10 |
| Width | 2.12 in |
| Depth | 0.12 in |
| Material | nylon |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -40-257 °F |
