9080GD6

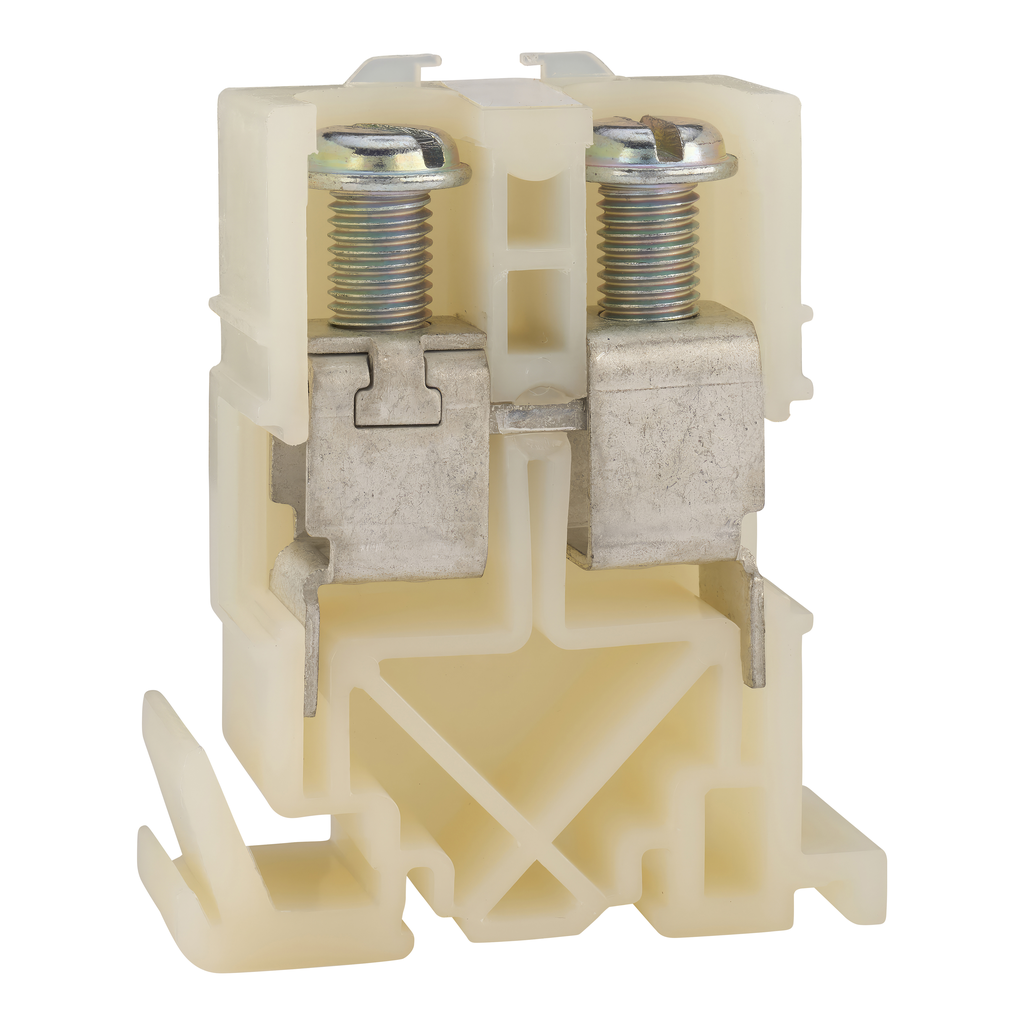

Terminal block, Linergy, box connector, natural colored block, 180A, 600V
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Each lug accepts 1 1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, 1 to 5 #8 AWG, 1 to 6 #10 AWG or 1 to 7 #12 AWG wires. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Number Of Terminal Blocks | 17 per foot |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-257 °F |
| Height | 2.71 in |
| Connections - Terminals | lug tin plated steel 45-50 lbf.in : AWG 12...AWG 1/0 copper) |
| Mounting Support |
|
| Electrical Connection | tin plated steel box lugs |
| Line Rated Current |
|
| Awg Gauge | AWG 12...AWG 1/0 copper |
| Width | 2.12 in |
| Depth | 0.7 in |
| Product Compatibility | GD6B |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Country of Origin | Mexico |
| Width | 2.12 in |
| Height | 2.71 in |
| Range Of Product | 9080G |
| Localisation On Device | standard |
| Product Or Component Type | terminal block |
| Color | natural |
| Quantity Per Set | set of 10 |
| Warranty | 18 months |
