9080GCB10

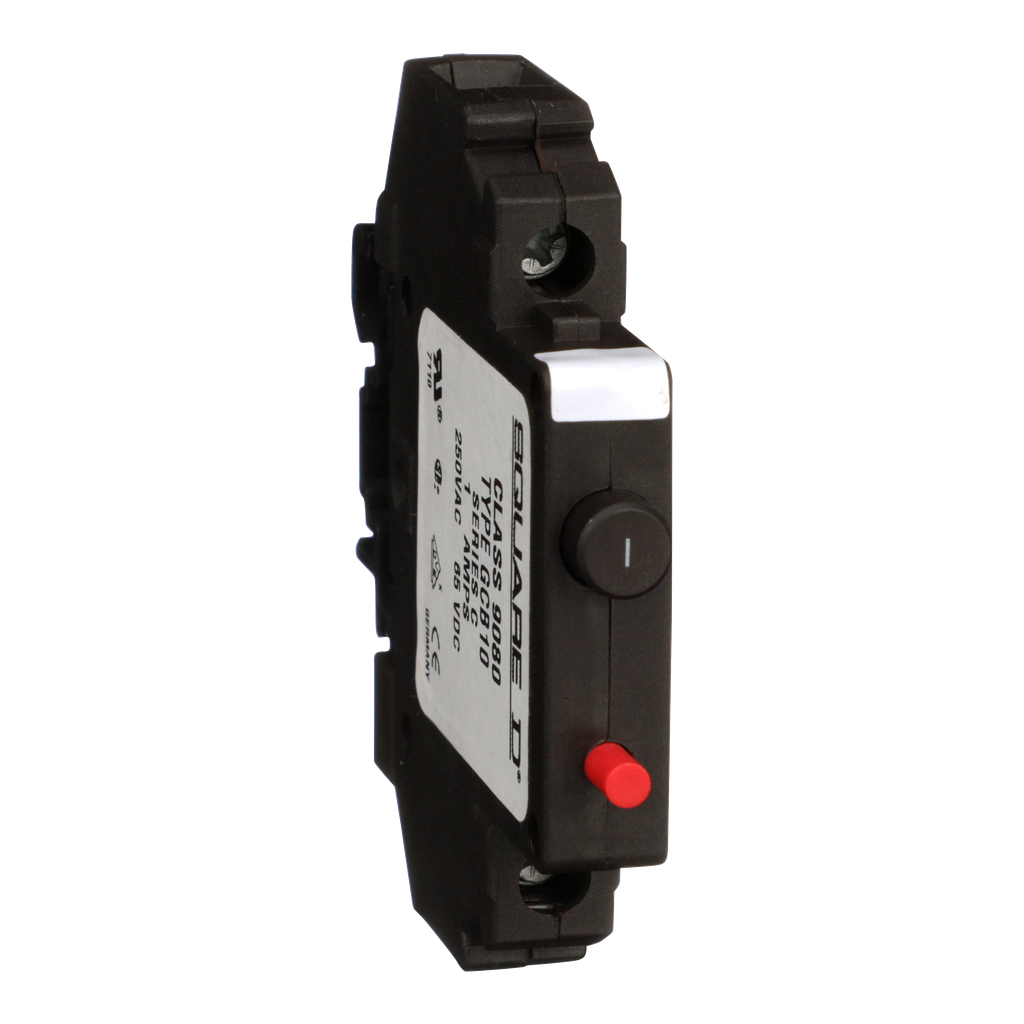

Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 1.0A, 250VAC, 65VDC
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 1.0 ampere. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Ambient Air Temperature For Operation | -22-140 °F |
| Height | 3.45 in |
| Temperature For Tripping | 70 °F |
| Mounting Support |
|
| Wire Stripping Length | 0.5 in |
| Contact Operation | trip-free |
| Wiring Device Additional Information | factory wiring only |
| Poles Description | 1P |
| Line Rated Current | 1 A |
| Protection Type | overcurrent |
| Awg Gauge | AWG 16...AWG 10 copper |
| Width | 3.15 in |
| Tightening Torque | control circuit 7-7 lbf.in cage type connector |
| Depth | 0.5 in |
| Device Application | Industrial Application |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | Germany |
| Length | 0.5 in |
| Width | 3.15 in |
| Height | 3.45 in |
| Range Of Product | 9080GCB |
| Product Or Component Type | Circuit Protector |
| Electrical Connection | box lugs |
| Trip Unit Technology | thermal-magnetic |
