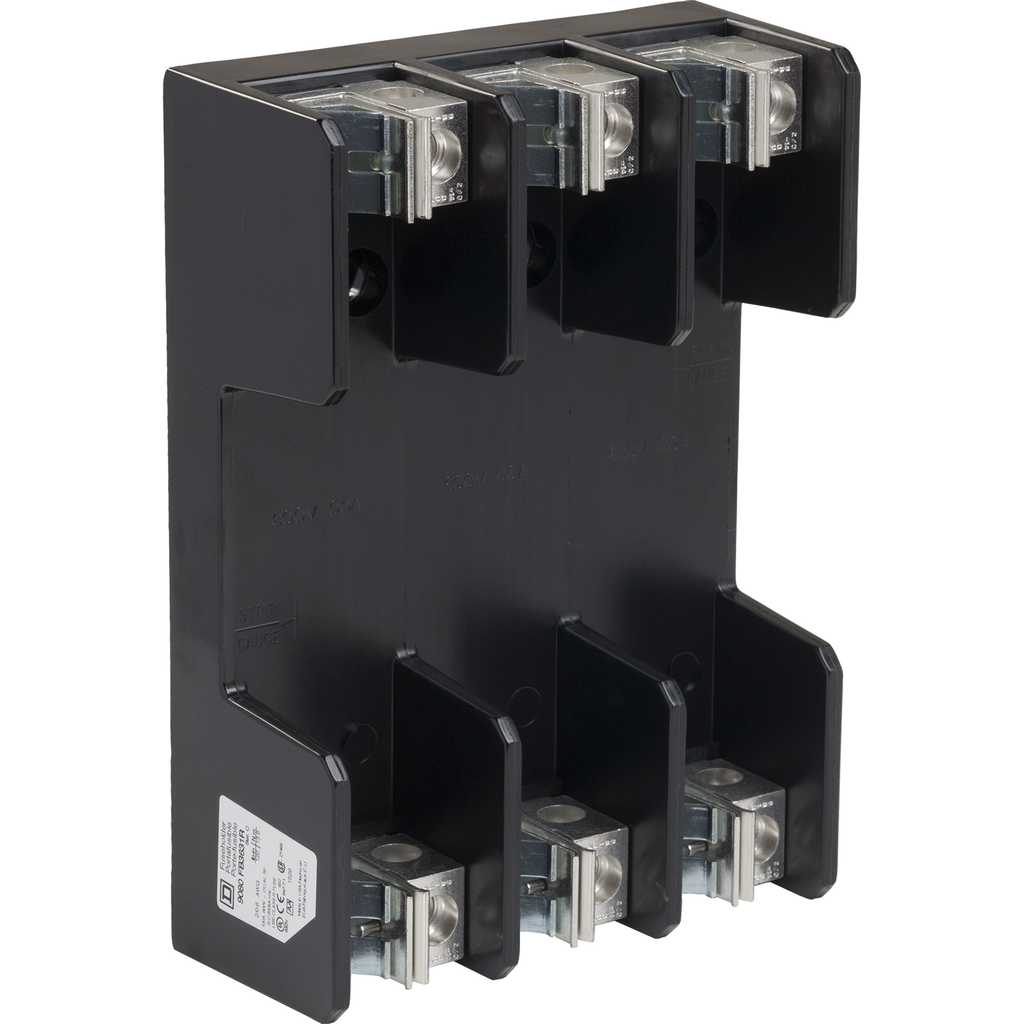

Terminal block, Linergy, fuse holder, Class R, 100A, 600 V, 3 pole
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. The box lug connectors will accept 6 to 2/0 AWG (16 to 50 mm2) solid or stranded copper or aluminum wire. Starter has a 208 VAC 60 Hz operating coil. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 1.3125 in |
| Width | 5.73 in |
| Height | 8.12 in |
| Range Of Product | 9080FB |
| Product Or Component Type | fuse holder |
| Product Certifications |
|
| Fuse Size | 1 x 7.875 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Ambient Air Temperature For Operation | -40-302 °F |
| Height | 8.12 in |
| Mounting Support | surface mount |
| Connections - Terminals |
|
| Wire Stripping Length | 1.3125 in |
| Fuse Type | R |
| Material | phenolic: block |
| Electrical Connection | box lugs |
| Line Rated Current | 100 A |
| Awg Gauge | AWG 6...AWG 2/0 copper or aluminium |
| Width | 5.73 in |
| Depth | 2.6 in |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | <= 600 V AC/DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
