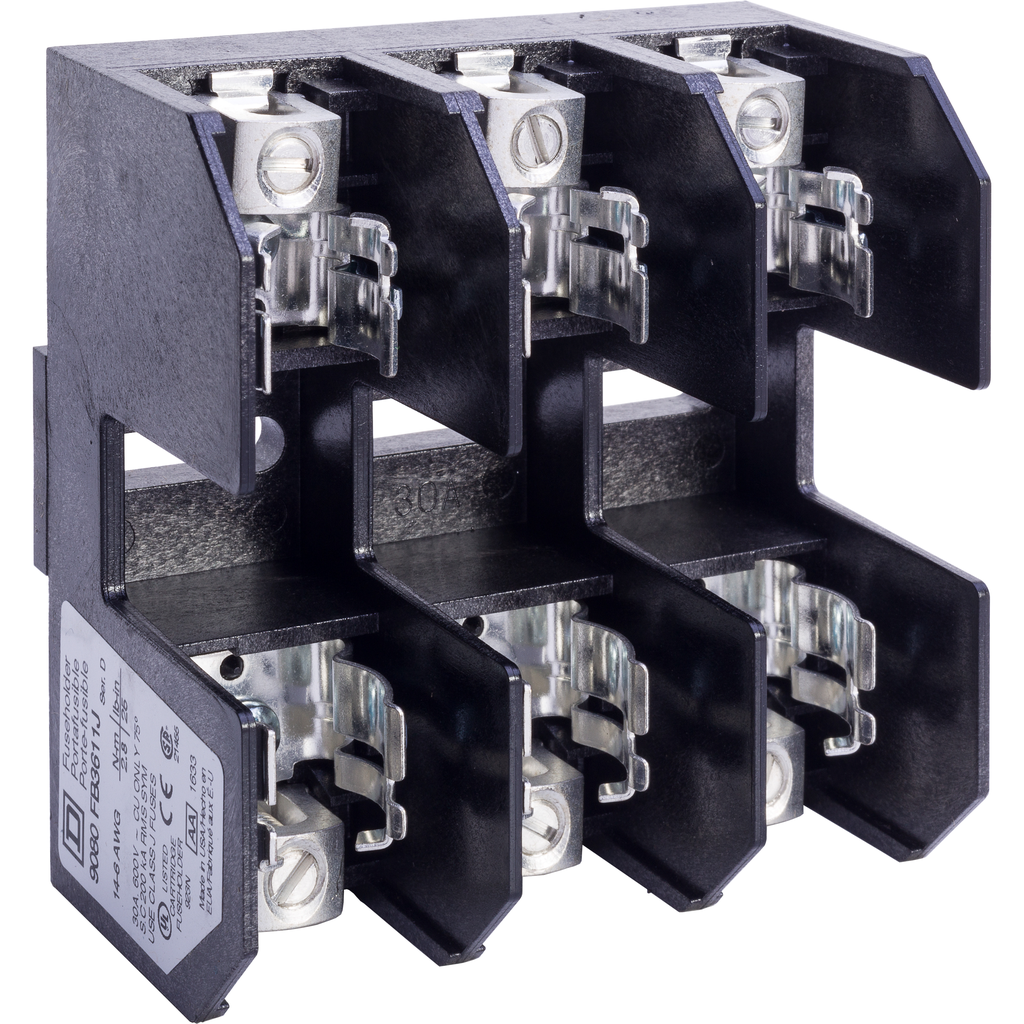

9080FB3611J - Fuse holder, Square D 9080FB, max 30A rated, 600VAC/DC, Class J type fuses, 3 pole, surface mount

9080FB3611J

Add to Quote Catalogue

Country of Origin	United States
Length	0.4375 in
Width	4.72 in
Height	4.07 in
Range Of Product	9080FB
Product Or Component Type	fuse holder
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Product Certifications	CSA file 70360 class 6225 01 CE UL listed file E40747 CCN IZLT
Fuse Size	0.8125 x 2.25 in
[Ics] Rated Service Breaking Capacity	200 kA UL 512
Ambient Air Temperature For Operation	-40-257 °F
Height	4.07 in
Mounting Support	surface mount
Connections - Terminals	screw terminals 25 lbf.in AWG 14...AWG 6 copper
Wire Stripping Length	0.4375 in
Fuse Type	J
Material	thermoplastic: block
Electrical Connection	box lugs
Line Rated Current	30 A
Awg Gauge	AWG 14...AWG 2 copper or aluminium
Width	4.72 in
Depth	2.09 in
Number Of Poles	3
[Ue] Rated Operational Voltage	<= 600 V AC/DC
Warranty	18 months
