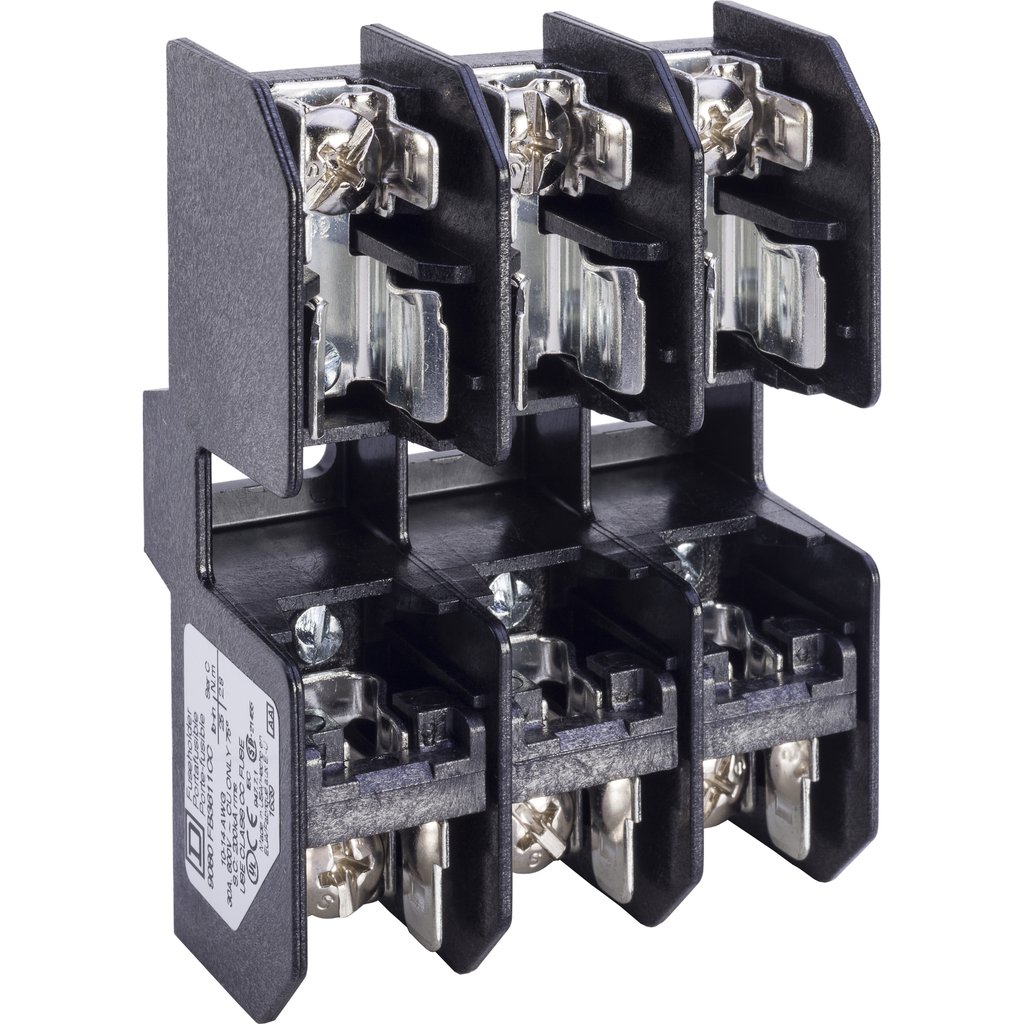

Terminal block, Linergy, fuse holder, Class CC, 30A, 600V, 3 pole
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The Motor Logic solid state overload relay is used to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.67 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Fuse Size | 0.4063 x 1.5 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Ambient Air Temperature For Operation | -40-257 °F |
| Height | 3.13 in |
| Mounting Support | surface mount |
| Connections - Terminals | screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| Wire Stripping Length | 0.4375 in |
| Fuse Type | CC |
| Material | thermoplastic: block |
| Electrical Connection | pressure wire clamp |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 14...AWG 10 copper or aluminium |
| Width | 2.35 in |
| Depth | 1.29 in |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | <= 600 V AC/DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Length | 0.4375 in |
| Width | 2.35 in |
| Height | 3.13 in |
| Range Of Product | 9080FB |
| Product Or Component Type | fuse holder |
| Warranty | 18 months |
