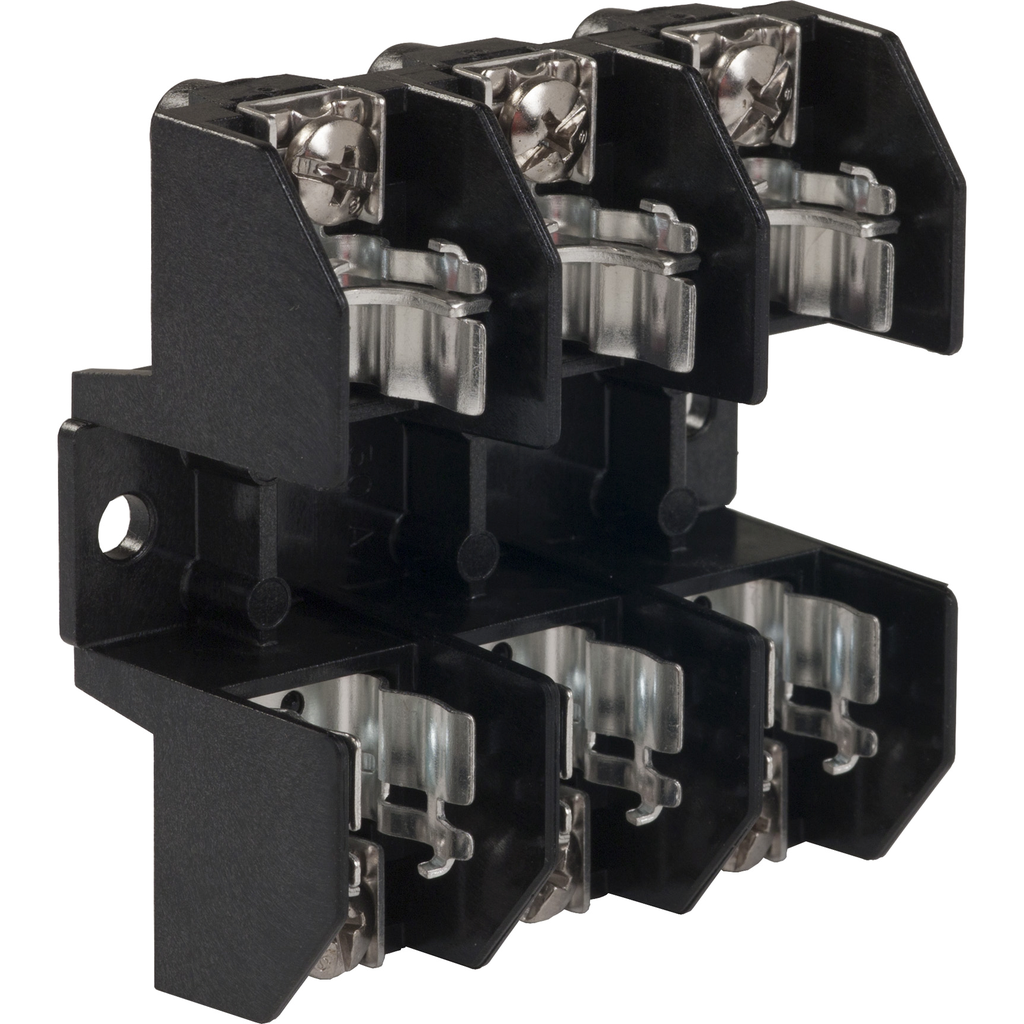

Terminal block, Linergy, fuse holder, Class R, 30A, 250V, 3 pole
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 2 HP at 115 and 3 HP at 230 single phase and has a maximum rating of 27 Amps. This 2 pole starter is for single phase applications. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Starter has a 220/240 VAC 50/60 Hz operating coil. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Fuse Size | 0.5625 x 2 in |
| [Ics] Rated Service Breaking Capacity | 200 kA UL 512 |
| Ambient Air Temperature For Operation | -40-257 °F |
| Height | 3 in |
| Mounting Support | surface mount |
| Connections - Terminals | screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| Wire Stripping Length | 0.4375 in |
| Fuse Type | R |
| Material | thermoplastic: block |
| Electrical Connection | pressure wire clamp |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 14...AWG 10 copper or aluminium |
| Width | 2.95 in |
| Depth | 1.38 in |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | <= 250 V AC/DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Length | 0.4375 in |
| Width | 2.95 in |
| Height | 3 in |
| Range Of Product | 9080FB |
| Product Or Component Type | fuse holder |
| Warranty | 18 months |
