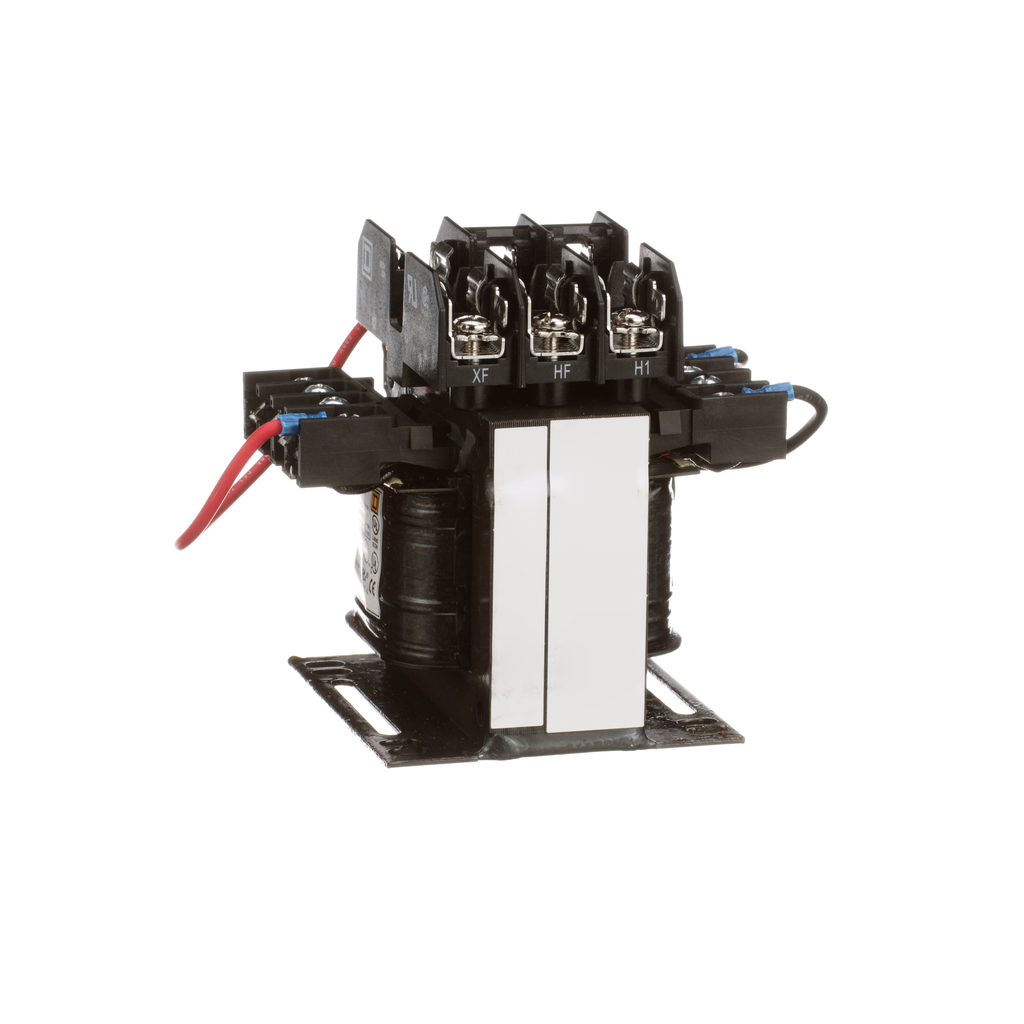

9070TF200D5
Industrial control transformer, Type TF, 1 phase, 200VA, 600V primary, 120V secondary, 50/60Hz
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 130 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 4.5 in |
| Fuse Type | 10.3 x 38 mm CC top |
| Temperature Rise | 80 °C |
| Rated Power In Va |
|
| Phase | 1 phase |
| Material | copper: winding |
| Electrical Connection | screw clamp terminals |
| Width | 3.75 in |
| Depth | 3.59 in |
| Product Compatibility | FSC1 |
| Primary Voltage |
|
| Country of Origin | United States |
| Width | 3.75 in |
| Height | 4.5 in |
| Range Of Product | TF |
| Product Or Component Type | Industrial Control Transformer |
