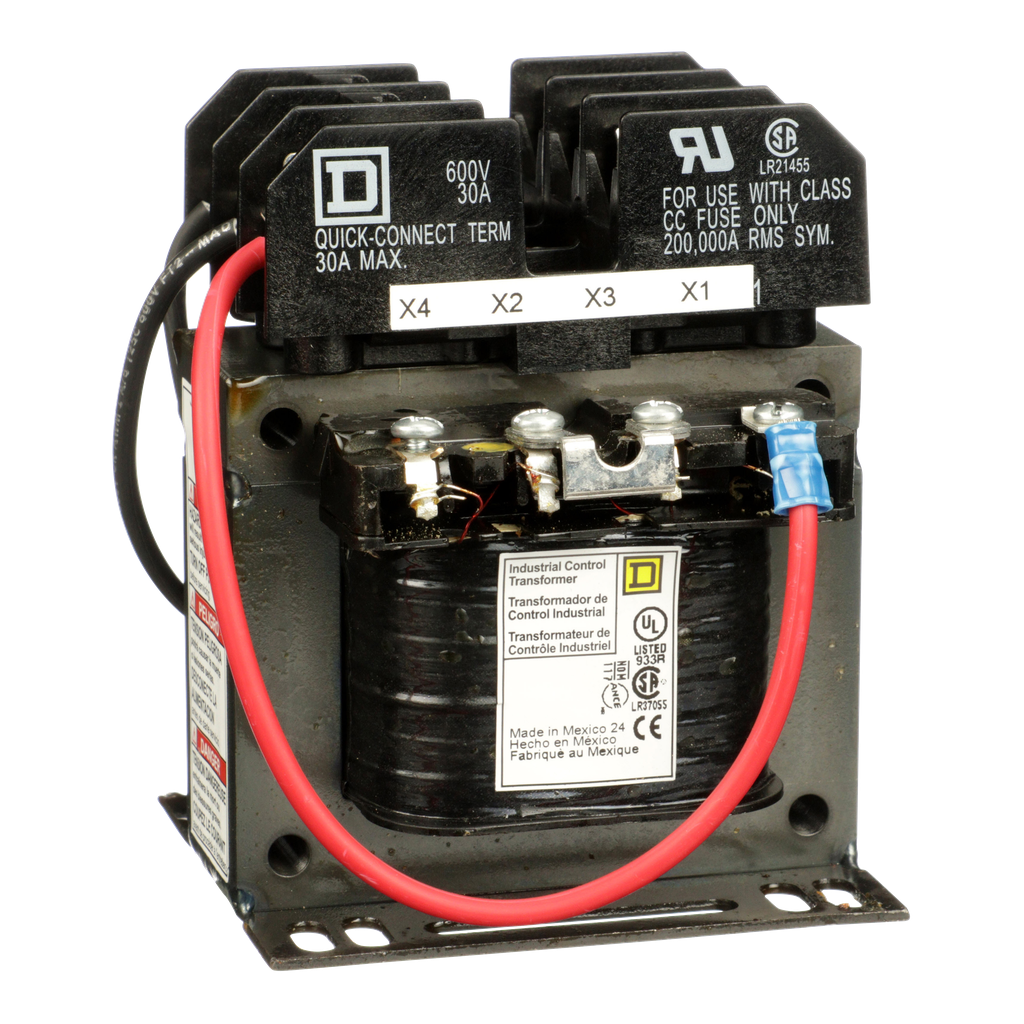

9070TF100D33 - Industrial control transformer, Type TF, 1 phase, 100VA, 380/400/415V primary, 115/230V secondary, 50/60Hz

9070TF100D33

Add to Quote Catalogue

Product Certifications	CSA file LR37055 guide 184-N-90 UL listed file E61239 CE
Insulation Temperature	105 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1308008EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Height	4.25 in
Fuse Type	0.41 x 1.50 in CC top
Temperature Rise	55 °C
Rated Power In Va	100 VA UL 100 VA CSA 100 VA NOM 100 VA CE
Material	copper: winding
Width	3.38 in
Depth	3.34 in
Primary Voltage	380/400/415 V 115/230 V
Country of Origin	United States
Width	3.38 in
Height	4.25 in
Range Of Product	TF
