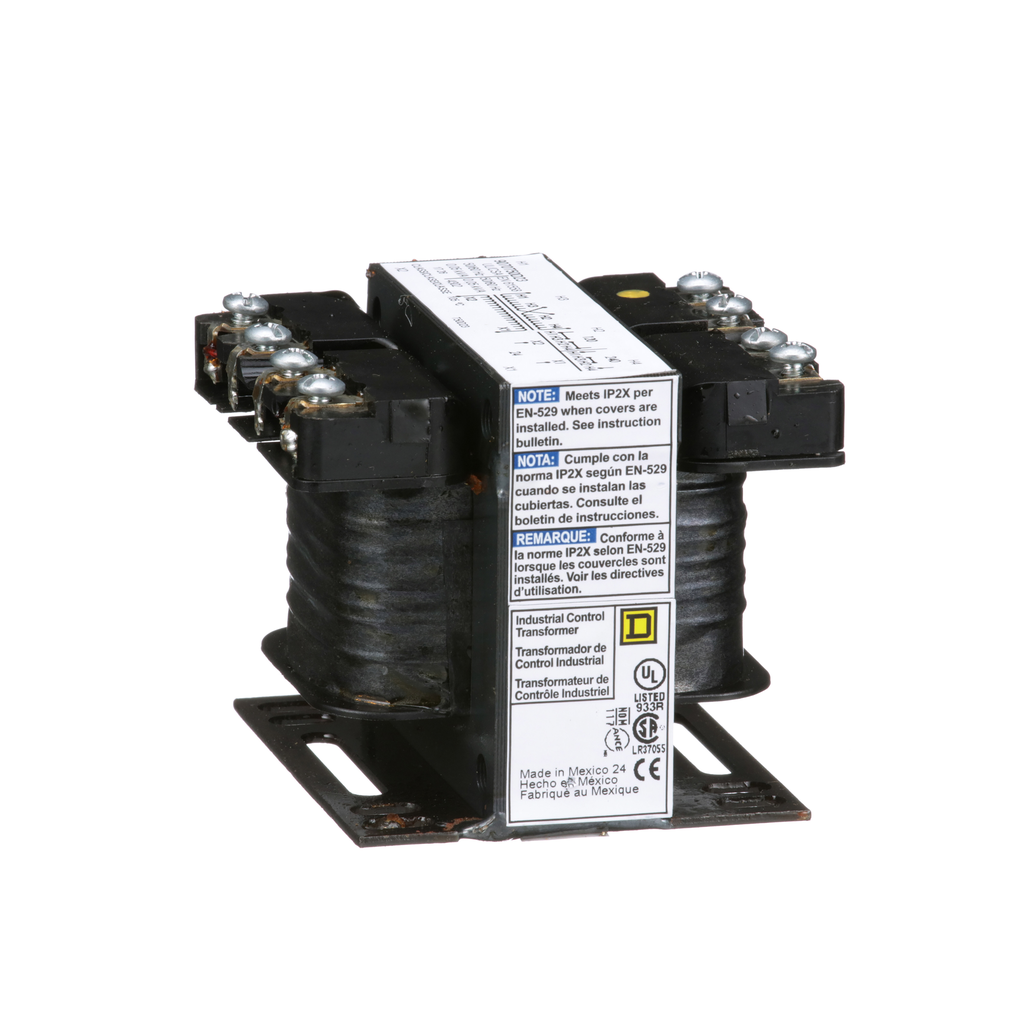

9070T50D23
Transformer, Type T, industrial control, 50VA, 1 phase, 120x240V primary, 24V secondary, 55C rise
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 50VA and is 1 phase. this transformer has a 120 x 240V primary voltage and 24V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 105 °C |
| Warranty | 10 Years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 2.58 in |
| Temperature Rise | 55 °C |
| Phase | 1 phase |
| Material | copper: winding |
| Electrical Connection | screw clamp terminals |
| Width | 3 in |
| Depth | 3.09 in |
| Product Compatibility | FSC1 |
| Primary Voltage | 120 x 240 V 24 V |
| Country of Origin | Mexico |
| Width | 3 in |
| Height | 2.58 in |
| Range Of Product | T |
| Product Or Component Type | Industrial Control Transformer |
| Rated Power In Va |
|
