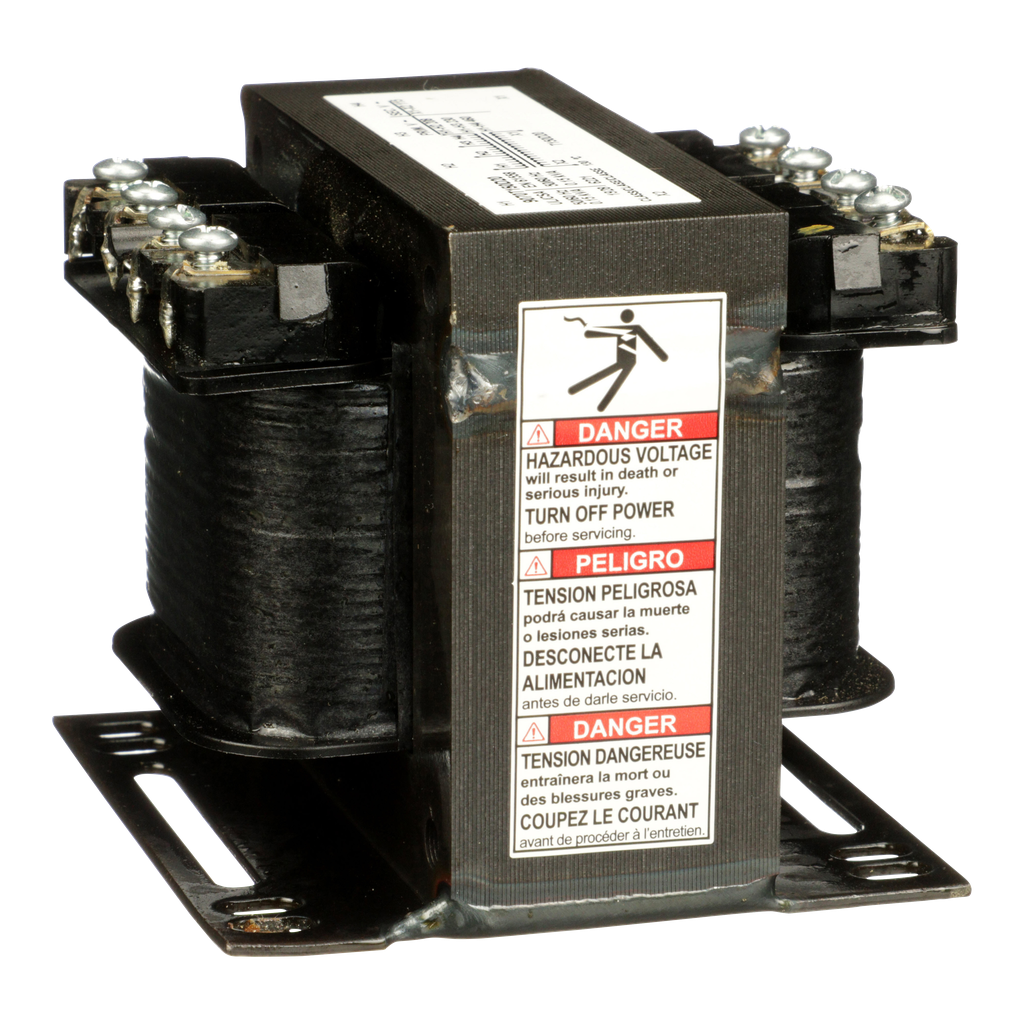

9070T150D20
Transformer, Type T, industrial control, 150VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. They have also been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 105 °C |
| Warranty | 10 Years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 3.2 in |
| Temperature Rise | 55 °C |
| Phase | 1 phase |
| Material | copper: winding |
| Electrical Connection | screw clamp terminals |
| Width | 3.75 in |
| Depth | 3.59 in |
| Product Compatibility | FSC1 |
| Primary Voltage | 208/230/460 V 115 V |
| Country of Origin | United States |
| Width | 3.75 in |
| Height | 3.2 in |
| Range Of Product | T |
| Product Or Component Type | Industrial Control Transformer |
| Rated Power In Va |
|
