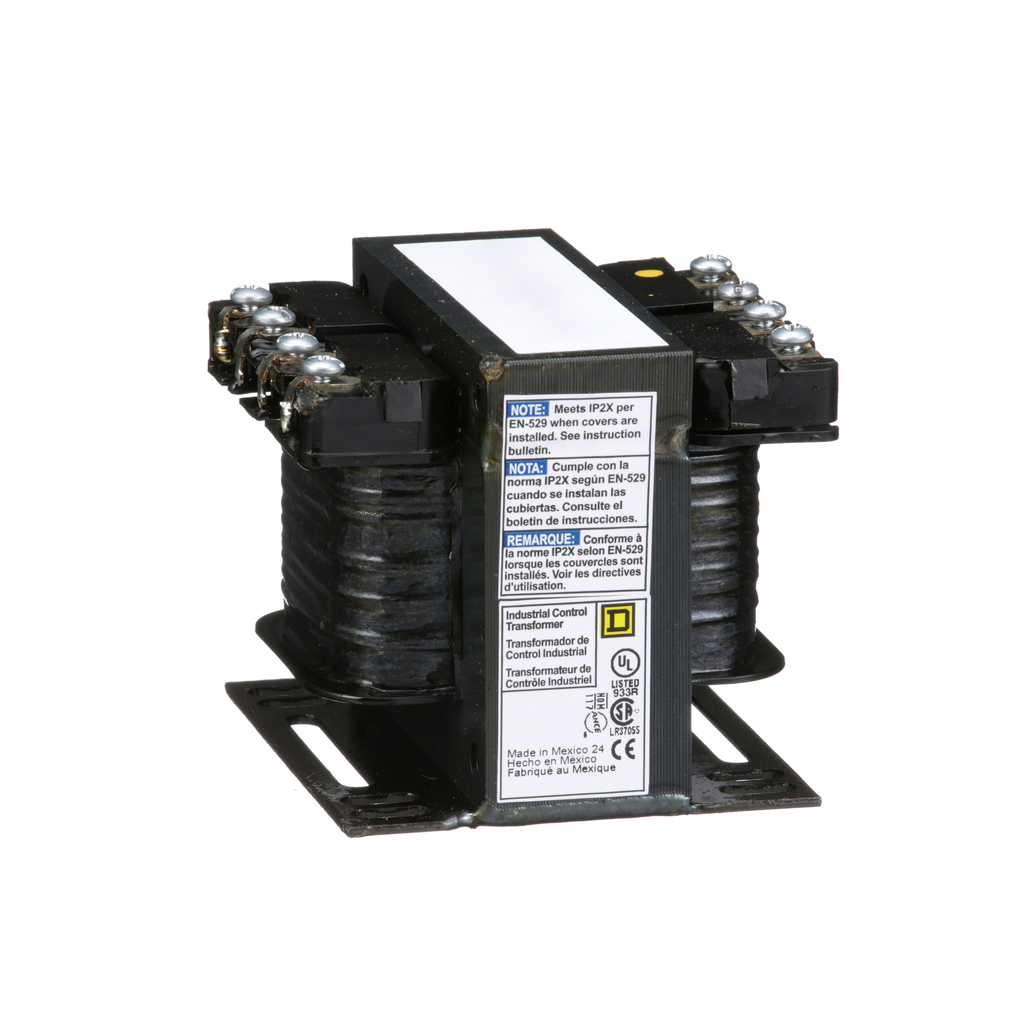

9070T100D16
Transformer, Type T, industrial control, 100VA, 1 phase, 600V primary, 24V secondary, 55C rise
Specifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 180 °C |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Temperature Rise | 55 °C |
| Electrical Connection | screw clamp terminals |
| Product Compatibility | FSC1 |
| Primary Voltage | 600 V 24 V |
| Phase | 1 phase |
| Country of Origin | Mexico |
| Range Of Product | T |
| Product Or Component Type | Industrial Control Transformer |
| Rated Power In Va |
|
