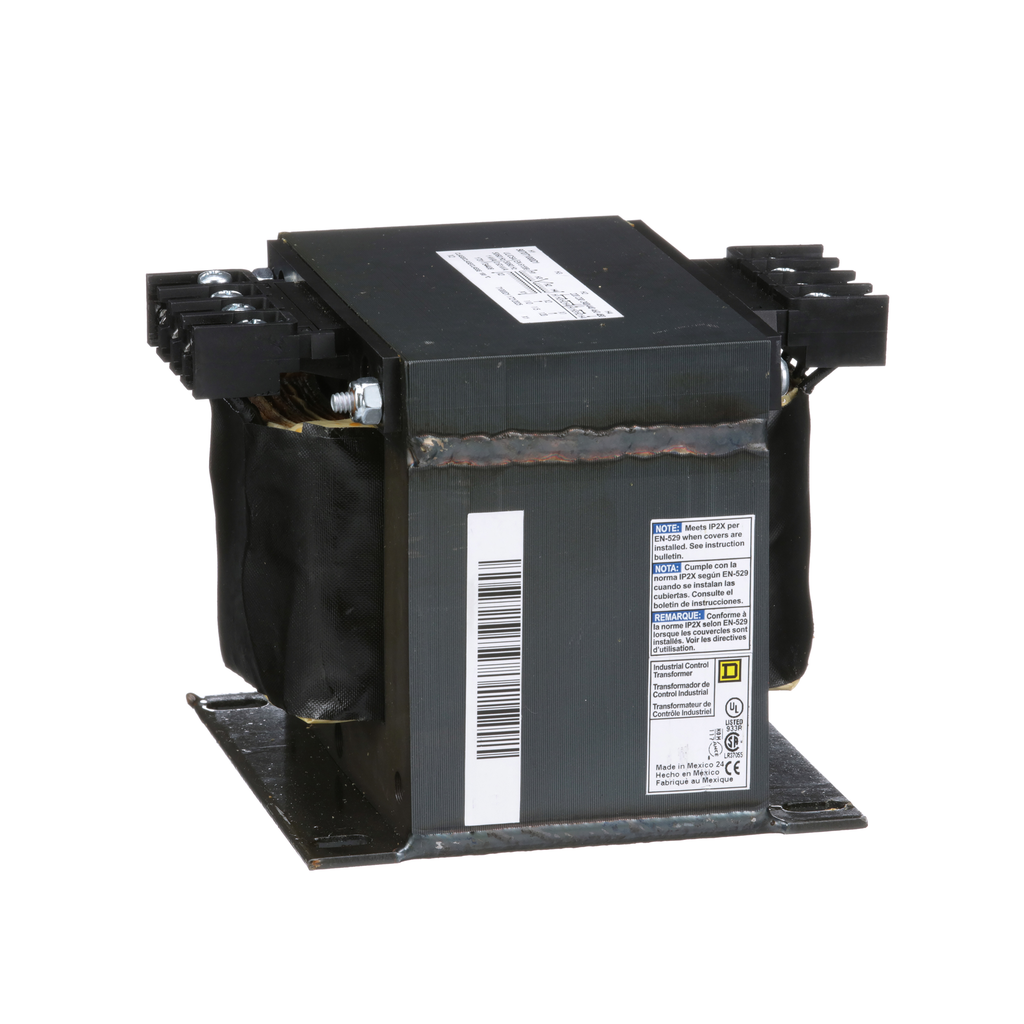

9070T1000D1B35 - Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Home > Schneider Electric > Transformers > Instrument and Industrial Control Transformers > Control Transformers > 9070T1000D1B35 – Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

9070T1000D1B35

Add to Quote Catalogue

Country of Origin	United States
Width	5.25 in
Height	4.51 in
Range Of Product	T
Product Or Component Type	Industrial Control Transformer
Rated Power In Va	1000 VA UL 1000 VA CSA 1000 VA NOM 630 VA CE
Height	4.51 in
Maximum Quantity Per Row	35
Temperature Rise	115 °C
Material	copper: winding
Electrical Connection	screw clamp terminals
Width	5.25 in
Depth	6.3 in
Product Compatibility	FSC2
Primary Voltage	240 x 480 V 120 V 230 x 460 V 115 V 220 x 440 V 110 V
Phase	1 phase
Product Certifications	UL listed file E61239 CSA file LR37055 guide 184-N-90
Nema Degree Of Protection	not rated (open device)
Insulation Temperature	180 °C
