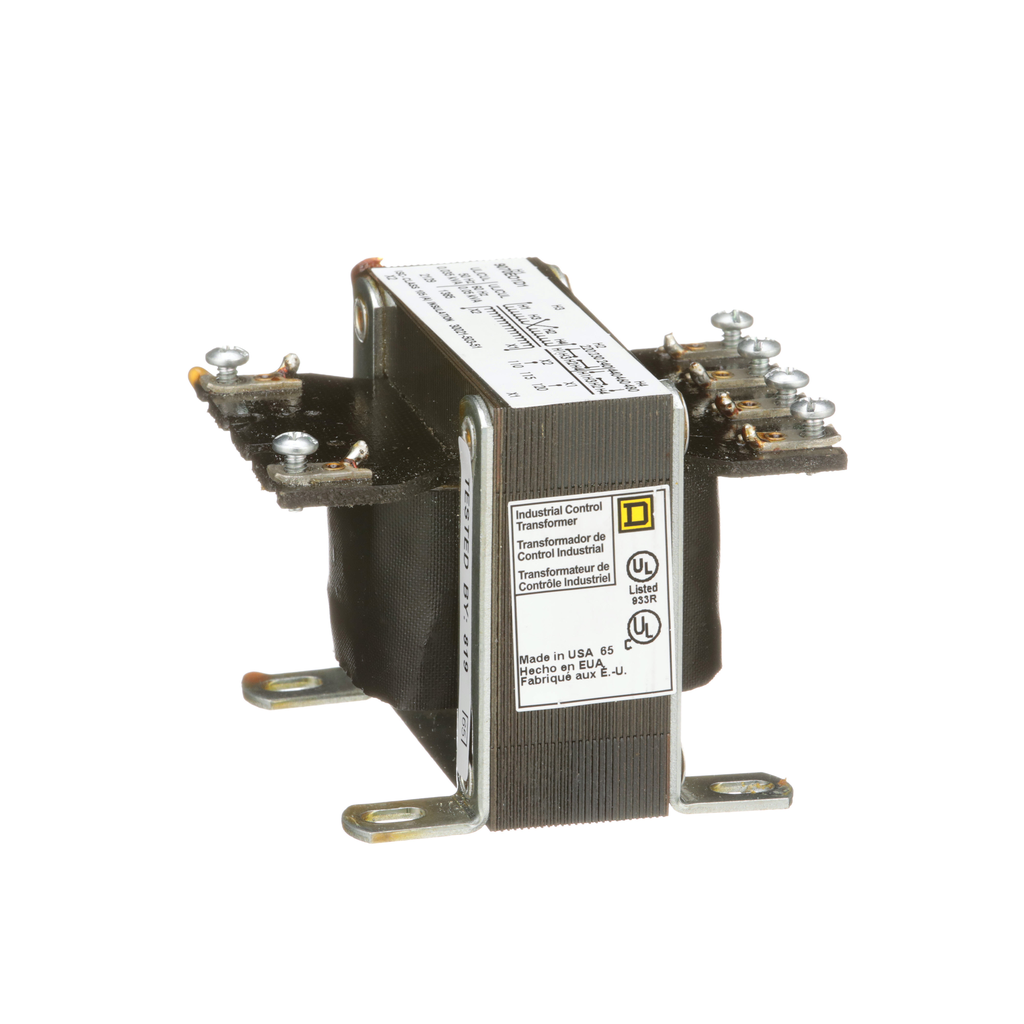

9070EO1D1
Transformer, EO, industrial control, 50VA, 1 phase, 240x480V primary, 120V secondary, 80C rise
The Square D™ by Schneider Electric Type EO Industrial Control Transformers are designed with exceptional voltage regulation and low temperature rise. This transformer is a single phase 50VA transformer designed for 240x480VAC primary with a 120VAC secondary. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) This transformer has primary voltage of 220 x 440 V and secondary voltages of 110 V.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Insulation Temperature | 130 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Primary Voltage |
|
| Secondary Voltage |
|
| Temperature Rise | 80 °C |
| Phase | 1 phase |
| Rated Power In Va | 50 VA |
| Electrical Connection | screw clamp terminals |
| Country of Origin | United States |
| Range Of Product | EO |
| Product Or Component Type | Industrial Control Transformer |
